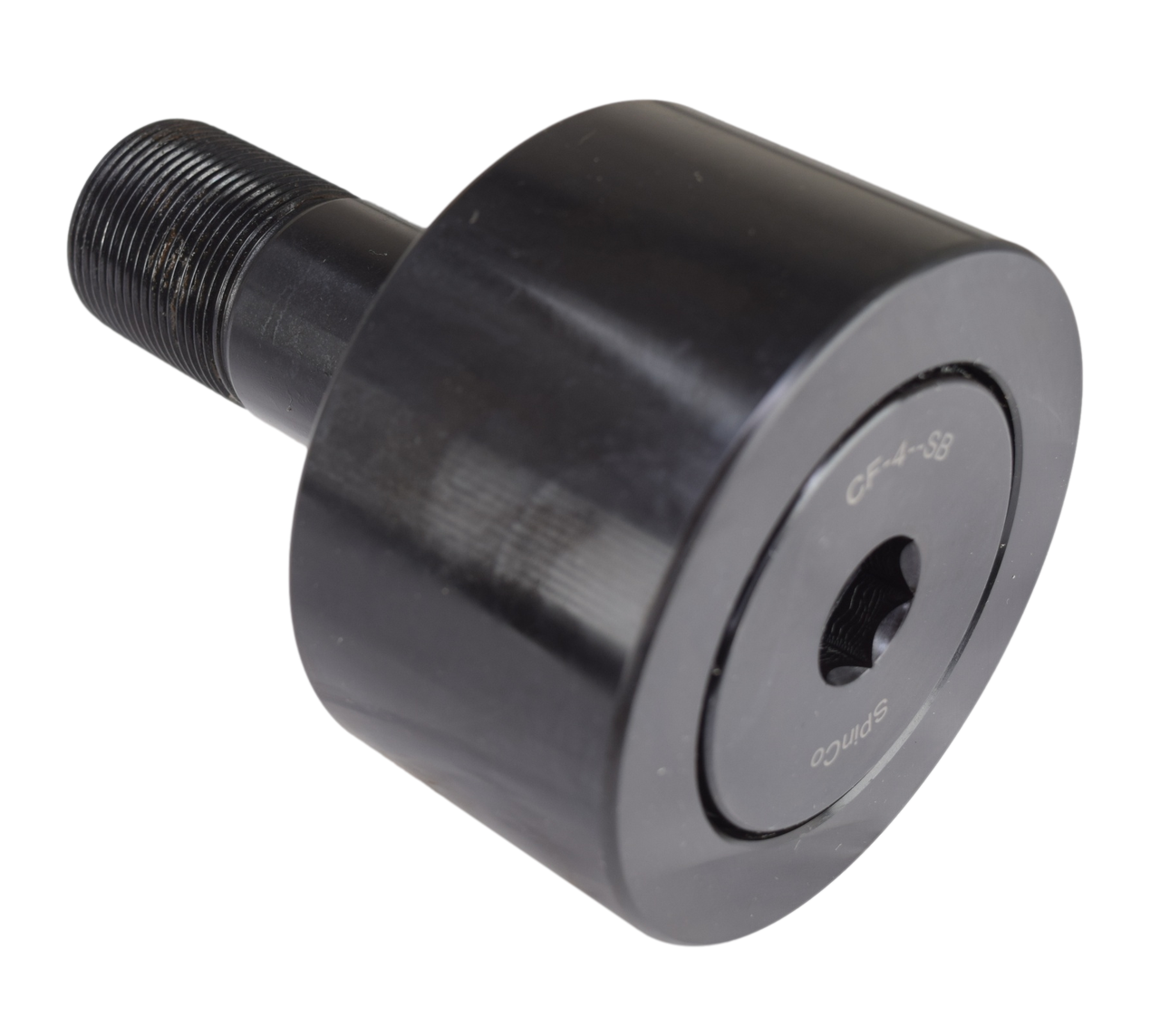

4" Sealed Cam Follower Bearing with Stud CF-4-SB, CRSB-64

CF-4-SB/CRSB-64

Description:

This stud type cam follower bearing is a full Complement needle bearing that supports high static and dynamic loads in cam or track applications. This bearing comes pre-lubricated. Seals help retain lubricant and prevent contamination and can be re-lubricated through oil holes in the stem or either end of the stud.  The hexagonal wrench socket provides for easy mounting and the surface of the bearing has a black oxide coating to prevent corrosion.

Interchange:

KOYO: CRSB-64
ABC: CR-4-XB
McGill: CF-4-SB
Osborn: CF-4-SB
Smith: CR-4-1/2-XB
RBC: S-128-LW
Torrington: BCRS-64-1

Basic Specs:

Roller O.D.: 4"
Roller Width: 2.25"
Stud OD: 1.5"
Stud Length: 3-1/2"
Thread Size: 1-1/2-12

Technical Information:

Dimensional Drawing
