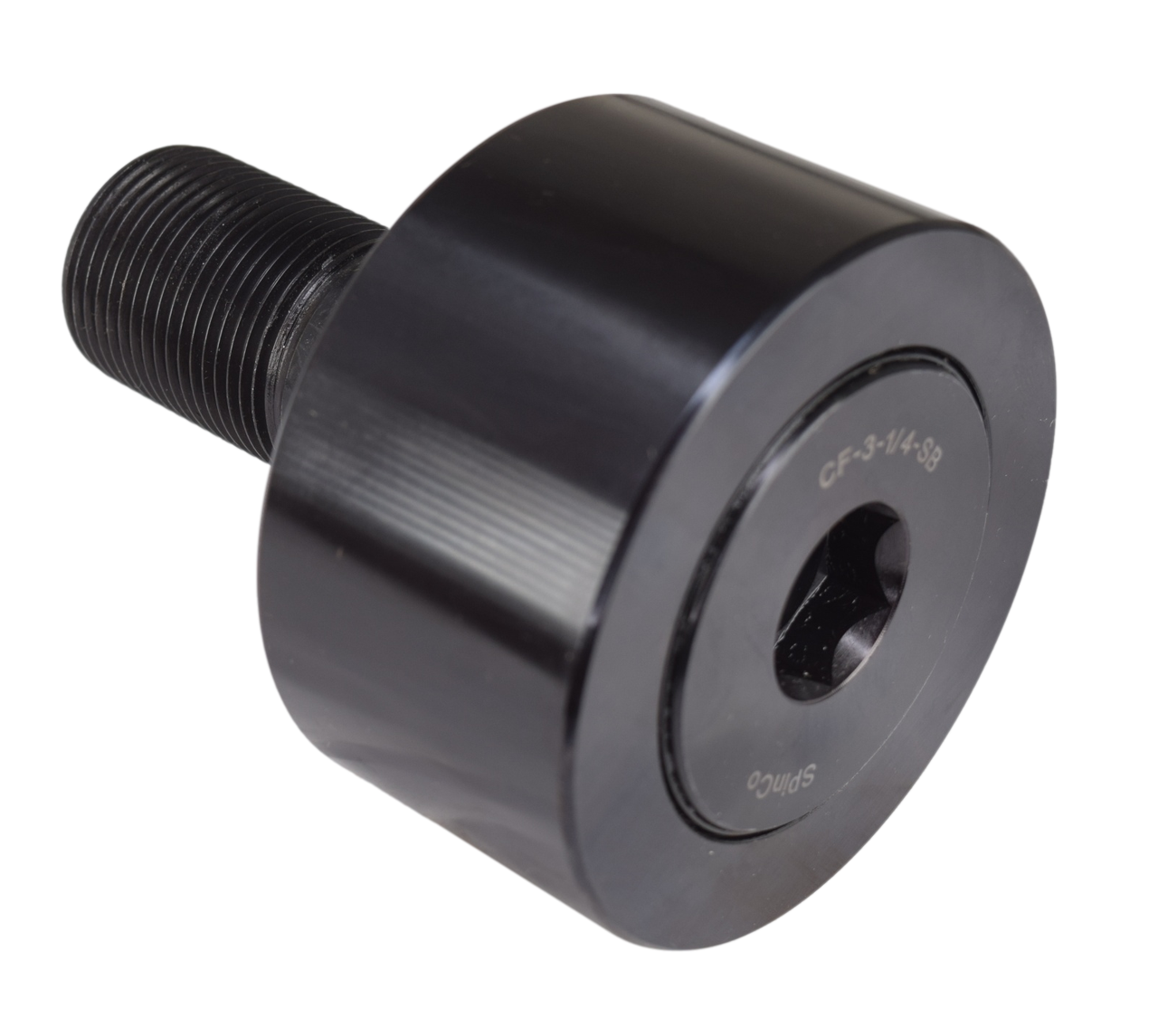

Description - 3-1/4" Sealed Cam Follower Bearing with Stud CF-3-1/4-SB, CRSB-52
CF-3-1/4-SB/CRSB-52
Description:
This stud type cam follower bearing is a full Complement needle bearing that supports high static and dynamic loads in cam or track applications. This bearing comes pre-lubricated. Seals help retain lubricant and prevent contamination and can be re-lubricated through oil holes in the stem or either end of the stud. The hexagonal wrench socket provides for easy mounting and the surface of the bearing has a black oxide coating to prevent corrosion.
Interchange:
KOYO: CRSB-52
ABC: CR-3-1/4-XB
McGill: CF-3-1/4-SB
Osborn: CF-3-1/4-SB
Smith: CR-3-1/4-XB
RBC: S-104-LW
Torrington: BCRS-52-1
Basic Specs:
Roller O.D.: 3-1/4"
Roller Width: 1.75"
Stud OD: 1.25"
Stud Length: 2-1/2"
Thread Size: 1-1/4-12
