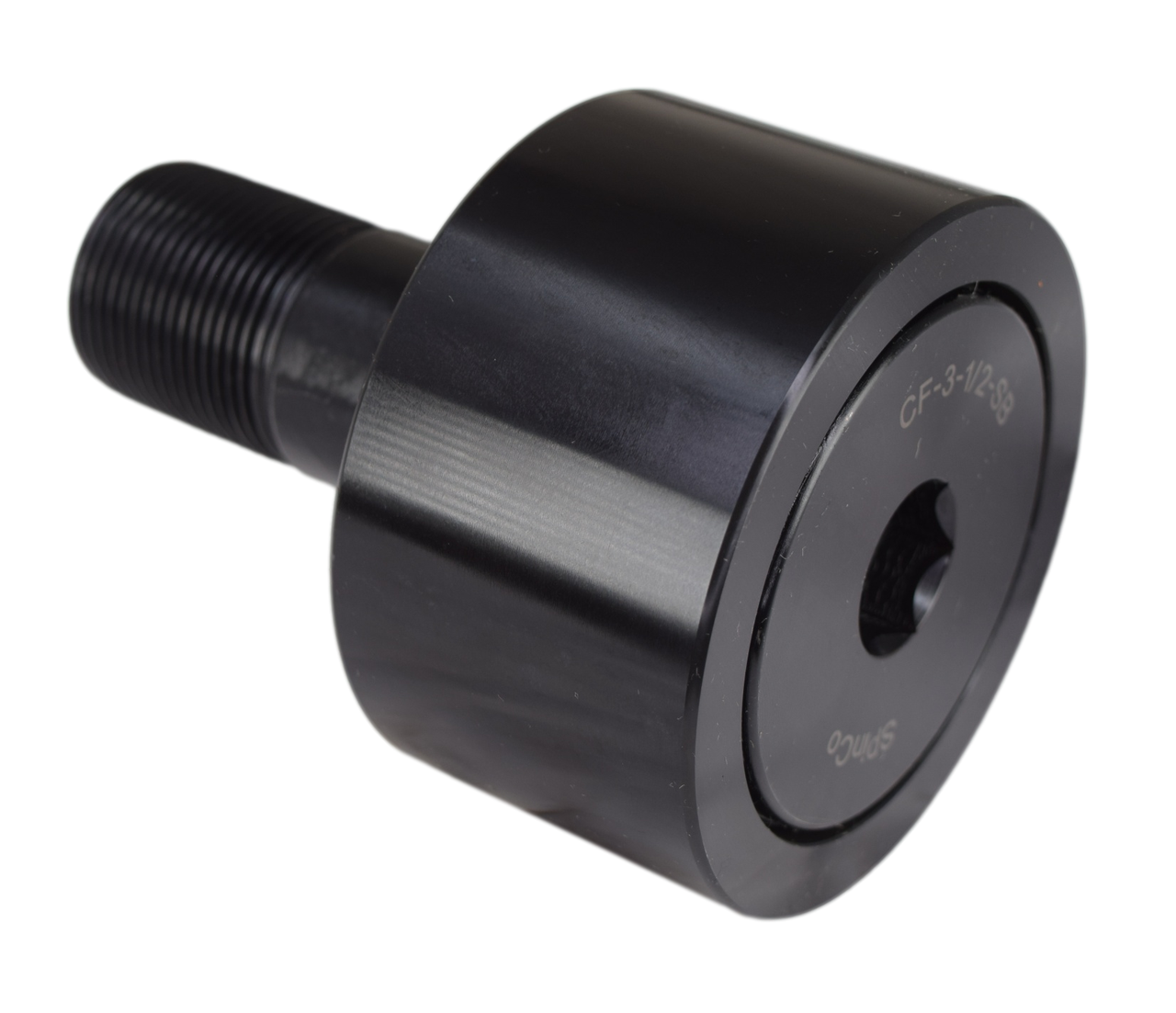

Description - 3-1/2" Sealed Cam Follower Bearing with Stud CF-3-1/2-SB, CRSB-56
CF-3-1/2-SB/CRSB-56
Description:
This stud type cam follower bearing is a full Complement needle bearing that supports high static and dynamic loads in cam or track applications. This bearing comes pre-lubricated. Seals help retain lubricant and prevent contamination and can be re-lubricated through oil holes in the stem or either end of the stud. The hexagonal wrench socket provides for easy mounting and the surface of the bearing has a black oxide coating to prevent corrosion.
Interchange:
KOYO: CRSB-56
ABC: CR-3-1/2-XB
McGill: CF-3-1/2-SB
Osborn: CF-3-1/2-SB
Smith: CR-3-1/2-XB
RBC: S-112-LW
Torrington: BCRS-56-1
Basic Specs:
Roller O.D.: 3-1/2"
Roller Width: 2"
Stud OD: 1.375"
Stud Length: 2-3/4"
Thread Size: 1-3/8-12
