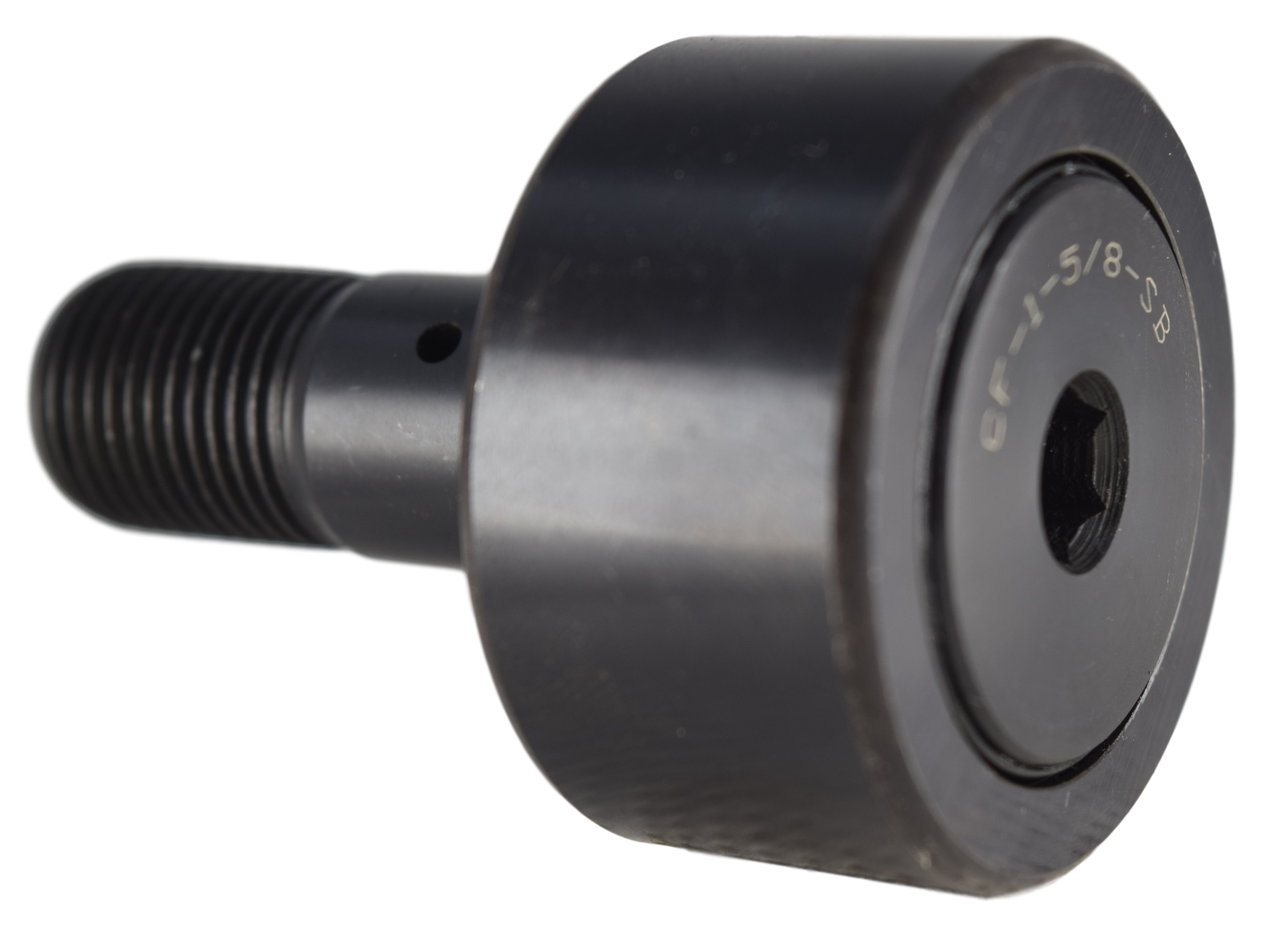

Description - 1-5/8" Sealed Cam Follower Bearing with Stud CF-1-5/8-SB
CF-1-5/8-SB
Description:
This stud type cam follower bearing is a full Complement needle bearing that supports high static and dynamic loads in cam or track applications. This bearing comes pre-lubricated. Seals help retain lubricant and prevent contamination and can be re-lubricated through oil holes in the stem or either end of the stud. The hexagonal wrench socket provides for easy mounting and the surface of the bearing has a black oxide coating to prevent corrosion.
Interchange:
ABC: CR-1-5/8-XB
McGill: CF-1-5/8-SB
Osborn: CF-1-5/8-SB
Smith: CR-1-5/8-XB
RBC: S-52-LW
Torrington: BCRS-26-1
Basic Specs:
Roller O.D.: 1.625"
Roller Width: 0.875"
Stud OD: 0.625"
Stud Lenght: 1.50"
Thread Size: 5/8-18
