Description - RM3-2RS V-Groove CNC Radial Ball Bearing 12mm
RM3-2RS V-Groove 12mm Ball Bearing
Product Details

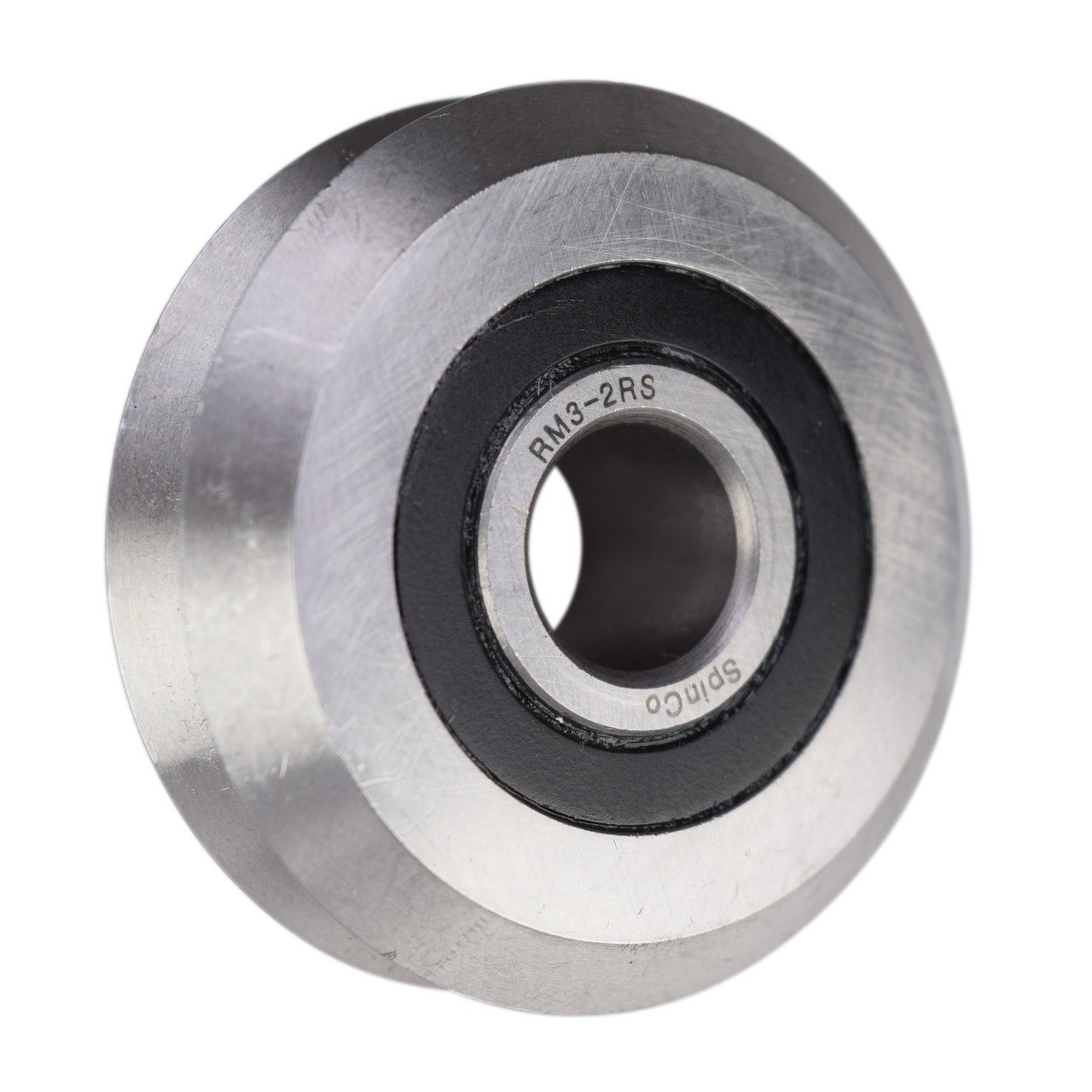

RM3-2RS Sealed Guide Wheel Bearing
- Features:
- Operable with either outer or inner V-shape of the W-shaped outer ring and usable for various applications as guide wheel.
- High precision grade by integral construction of bearing and precision-ground W-shaped outer ring.
- Tolerant to both radial and axial load with inner construction of double row angular contact type and also resistant to moment load.
- Made of SAE 52100 bearing steel Material.
Illustrations of different ways to use these bearings:
|
Bearing |
d |
D |
B |
D1 |
G |
H |
Cr |
Cor |
|
RM3 |
12mm |
1.80" |
0.625" |
1.5" |
0.75" |
1.06" |
5530n |
5200n |
