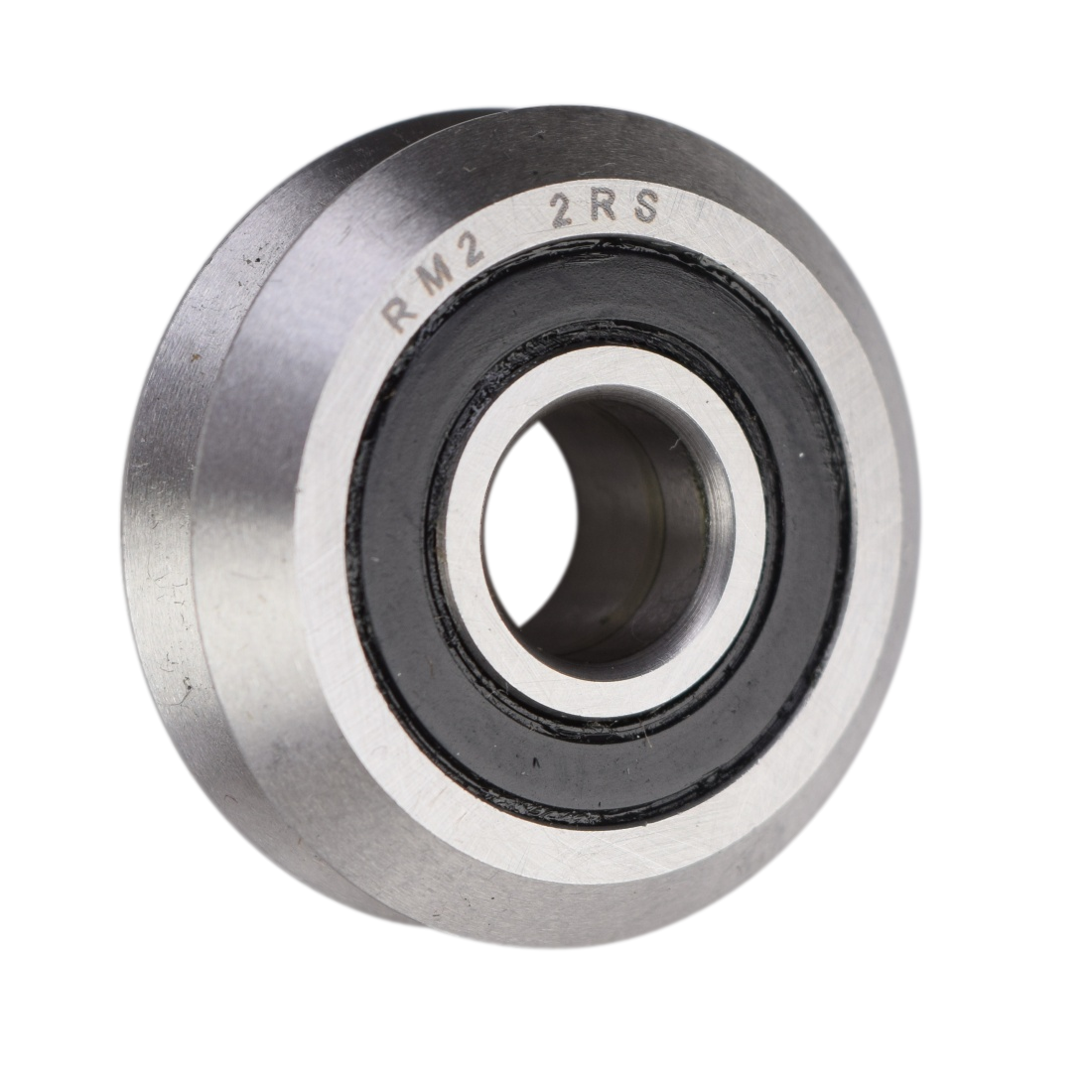

Description - RM2-2RS V-Groove CNC Radial Ball Bearing 3/8"
RM2-2RS V-Groove 3/8" Ball Bearing
Product Details
RM2-2RS Sealed Guide Wheel Bearing
- Features:
- Operable with either outer or inner V-shape of the W-shaped outer ring and usable for various applications as guide wheel.
- High precision grade by integral construction of bearing and precision-ground W-shaped outer ring.
- Tolerant to both radial and axial load with inner construction of double row angular contact type and also resistant to moment load.
- Made of SAE 52100 bearing steel Material.
Illustrations of different ways to use these bearings:
|
Bearing |
d |
D |
B |
D1 |
G |
H |
X |
Y |
r min. |
Cr |
Cor |
|
RM2 |
3/8" |
1.21" |
0.437" |
1" |
0.5" |
0.72" |
0.023" |
0.001" |
0.002" |
4700 |
2780 |
