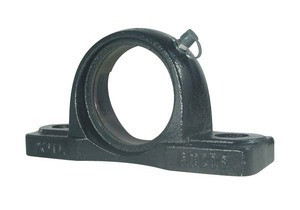

Description - AK206 Pillow Block Housing Low Center For 62MM OD Bearings
This pillow block housing fits insert bearings with 62mm OD curved outer race. This housing is cast iron and has a low shaft center height compared to other pillow block housings. The housing includes a grease fitting for lubricating re-lube style bearings.
Dimensions:
Fits bearings with OD of: 62MM
Bolt hole to bolt hole: 4.76 in. (121mm)
Overall length: 6.29 in. (160mm)
Shaft height: 1.56 in. (39.7mm)
Overall height: 3.11 in. (79mm)
Bolt hole: .551 in. (14mm)
