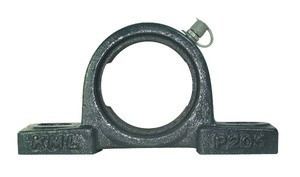

Description - P208 Pillow Block Housing High Center For 80MM OD Bearings
This pillow block housing fits insert bearings with 80mm OD curved outer race. This housing is cast iron and has a high shaft center height compared to other pillow block housings. The housing includes a grease fitting for lubricating re-lube style bearings.
Diminisions:
Fits bearings with OD of: 80MM
Bolt hole to bolt hole: 5.35 in. (136mm)
Overall length: 7.25 in. (184mm)
Shaft height: 1.93 in. (49.2mm)
Overall height: 3.85 in. (98mm)
Bolt hole: .669 in. (17mm)
