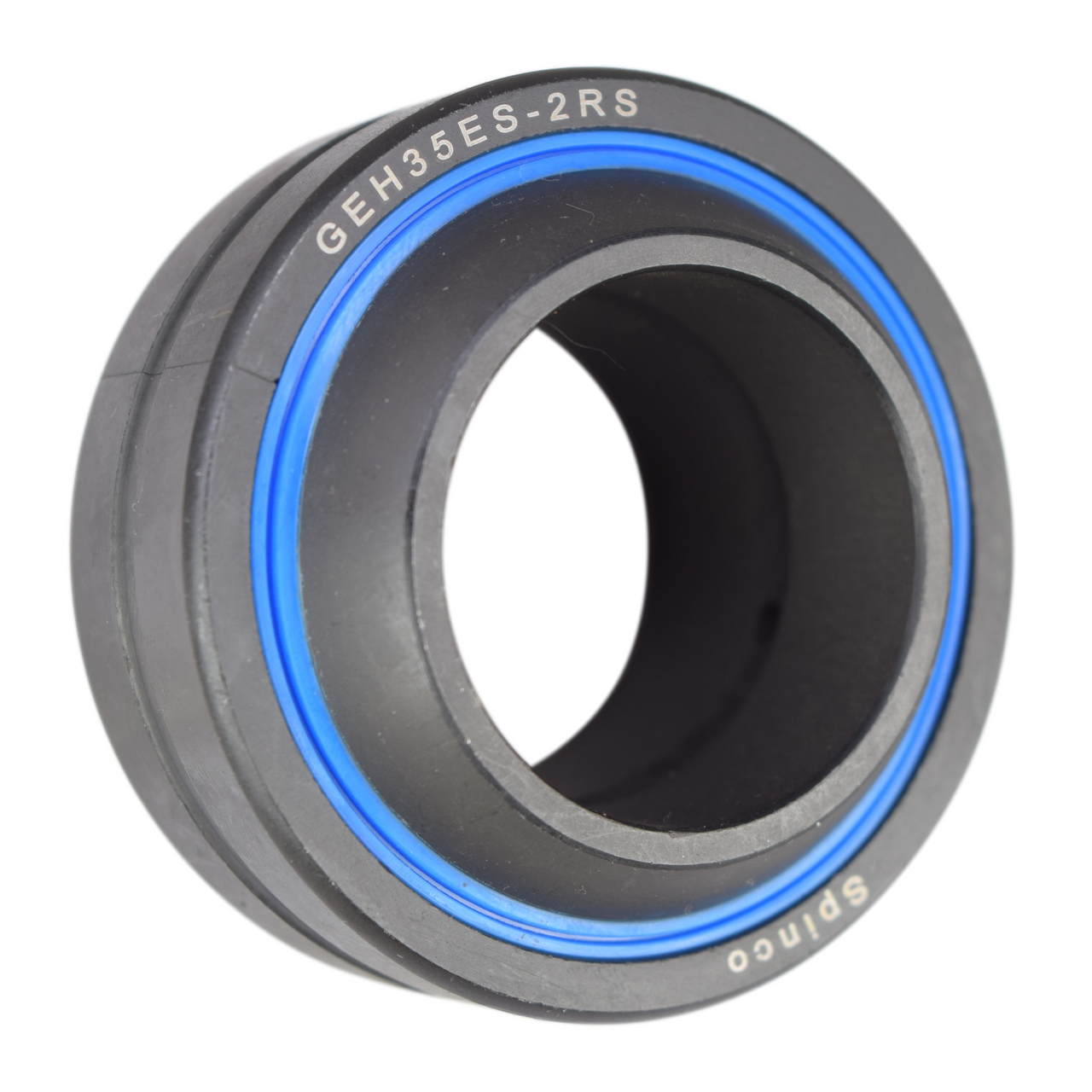

Description - GEH35ES-2RS 35MM Spherical Plain Bearing
GEH35ES-2RS
Description:
Our spherical plain bearings consist of an outer and inner ring that are designed for bearing arrangements where oscillating movements are required and can accommodate misalignment.
The GEH-ES series spherical plain bearing features precision ground 52100 bearing steel that is heat treated and phosphated. The sliding surfaces are treated with MoS2 and the inner and outer race are equipped with oil holes in each and sealed with two rubber seals.
Interchange:
National: GEG35ES-2RS
SKF: GEH35ES-2RS
RBC: MBH35-SS
TORRINGTON: 35FSH62-TT
INA: GE35FO-2RS
IKO: GE35GS-2RS
Basic Specs:
Bore Diameter: 35 MM
Outside Diameter: 62 MM
Inner Ring Width: 35 MM
Outer Race Width: 22 MM
Technical Information:
