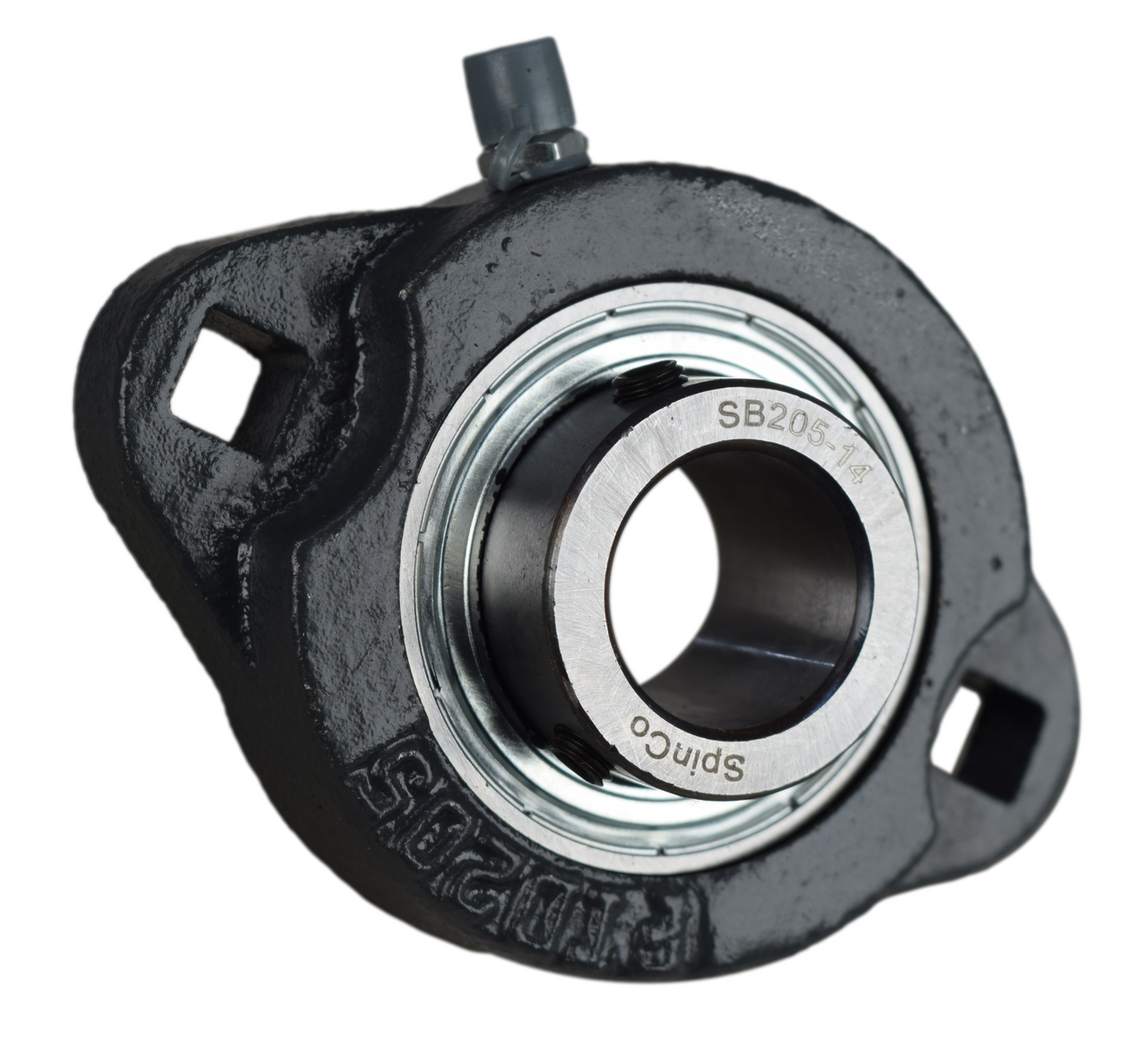

Description - 7/8" Ductile Iron Two Bolt Flange Bearing SBFTD205-14G
High quality light duty 7/8" two bolt flange bearing. The bearing has a narrow inner ring with two set screws for attaching to the shaft. Housing is ductile iron with square bolt holse and a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
7/8" |
2.99" |
3.74" |
2.72" |
1.11" |
Click Above for Full Dimensions
Interchanges with
Peer: FHSFX205-14G
AMI: BFX205-14
Browning: VF2S-114M
Dodge: LFT-SC-014
FAFNIR: GSFTD-7/8
Hub City: FB110/160-7/8
IPTCI: SBLF205-14GH-4
SealMaster: LFT-14
