Description - 5/8"x3/4"x1" Sintered Bronze Sleeve Bushing

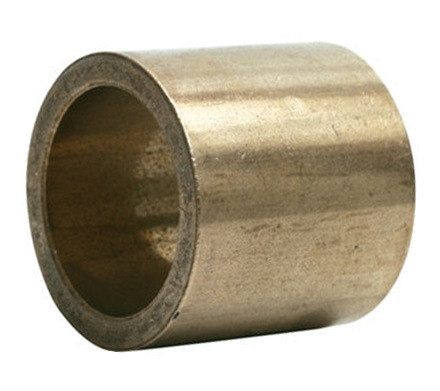

5/8" X 3/4" X 1" Bronze Sleeve Bushing
Description:
High quality, oil impregnated bronze material that does not require added grease. Has a higher K-strength than the industry standard. Made in the USA. SAE 841.
Technical Data:
| Attributes: | Values: |
| Nominal I.D. (in) | 5/8 |
| Nominal O.D. (in) | 3/4 |
| I.D. Min (in) | 0.6270 |
| I.D. Max (in) | 0.6280 |
| O.D. Min (in) | 0.7520 |
| O.D. Max (in) | 0.7530 |
| Nominal Length (in) | 1 |
| Length (in) | 1.0000 |
| Oil Content | 0.19 |
| V Value (Max) | 1200 |
| PV Value (Max) | 50000 |
| Interchangeable with | AA-710-3 |
| Interchangeable with | B1012-8 |
| Interchangeable with | P-62-8 |
| Interchangeable with | EP101216 |
