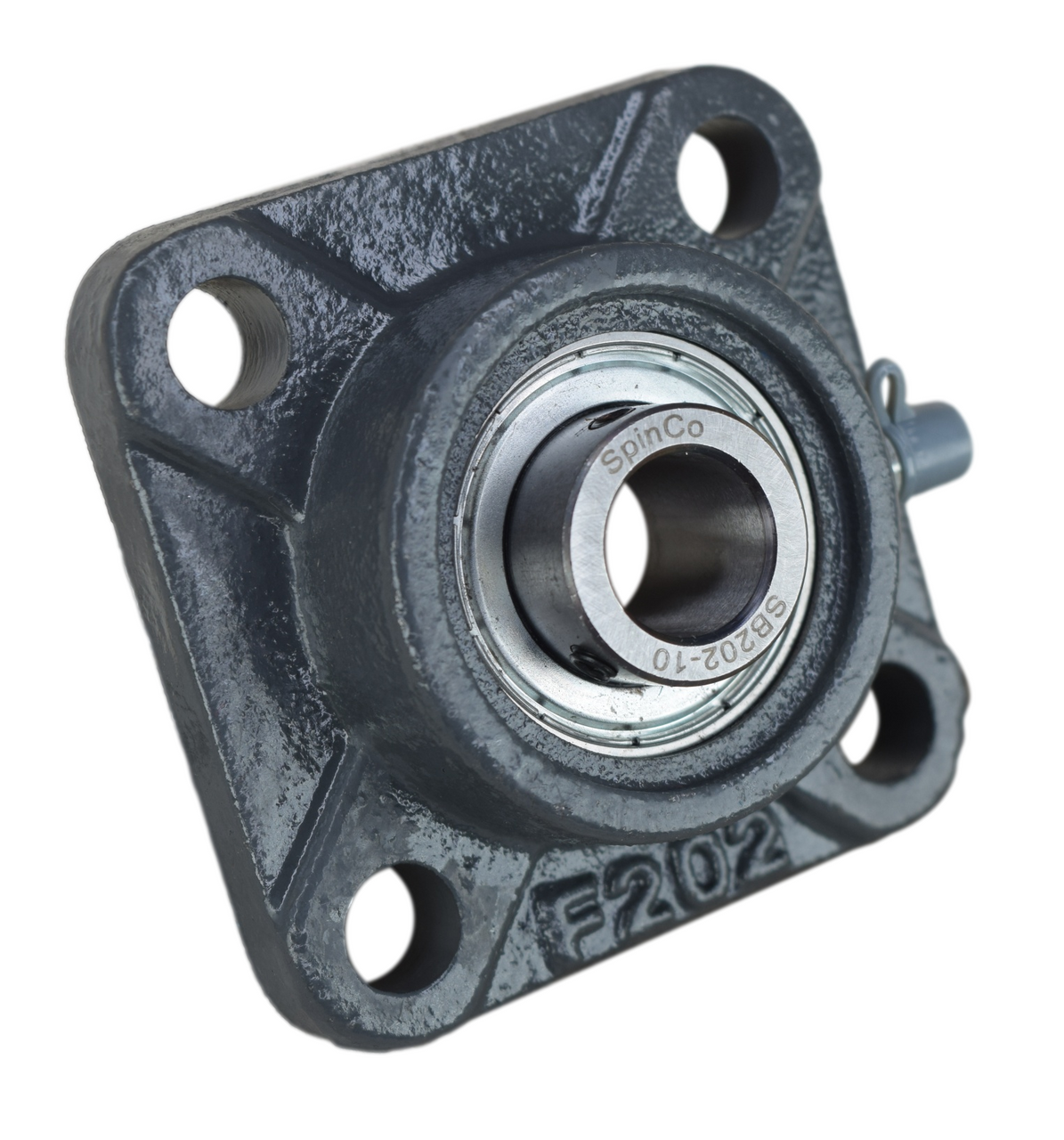

Description - 5/8" Four Bolt Flange Bearing SBF202-10G, F4B-SC-010, VF4S-210, SF-10
High quality 5/8" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
5/8" |
2.125" |
3.00" |
1.31" |
0.375" |
Click Above for Full Dimensions
INTERCHANGES
Browning: VF4S-210
Dodge: F4B-SC-010
Fafnir: RCJC-5/8
Fafnir: YCJ-5/8
NTN: UCF202-010D1
Peer: UCF202-10, FHSFJ202-10G
Sealmaster: SF-10
SKF: FY-5/8-TM
