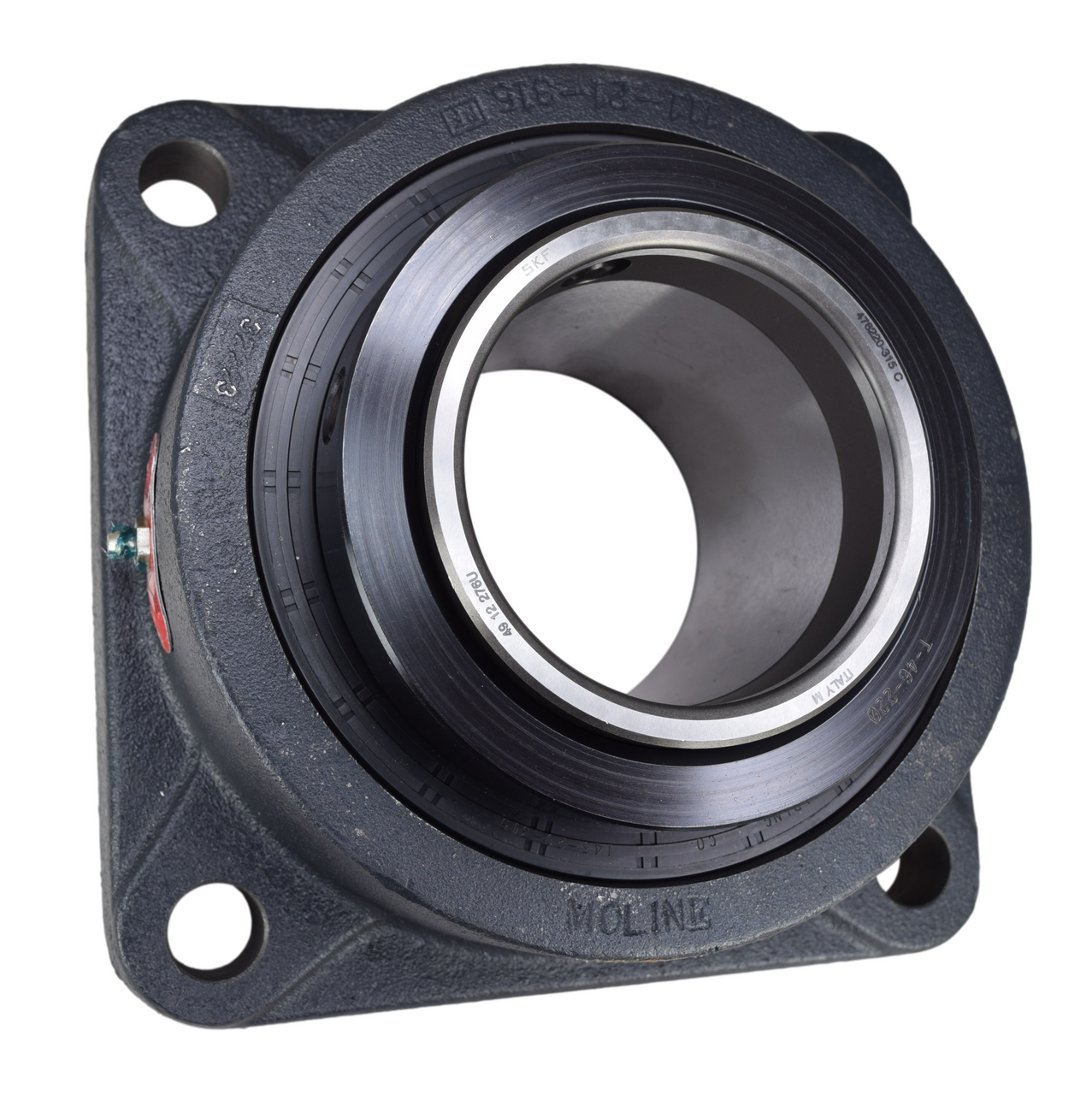

4" M2000 Heavy Duty Four Bolt Flange Bearing 19111400 / 19211400

$968.64
SKU:

M2000F-4

Quantity

Description - 4" M2000 Heavy Duty Four Bolt Flange Bearing 19111400 / 19211400

These heavy-duty flange bearings are made with SKF and Timken Spherical Roller Bearing inserts for the best performance in radial loads. Equal to Dodge and SKF S2000 series flange bearings, these heavy duty flange bearings are made by Moline Bearing Co. in the USA.

The housings are made of USA Class 30 cast iron. The bearings are genuine SKF and Timken Spherical Roller Bearings that use vacuum degassed steel which gives rollers and races added life, provides superior load and speed characteristics. Drive collar includes 2 headless set screws spaced 65° apart, locking it to the shaft. High radial load capacities. Completely assembled, adjusted, sealed and pre-lubricated at the factory and are
assembled with a standard triple lip contact seals. It can be assembled with a balanced labyrinth seal for high heat or high-speed environments (up to 350°).

Each bearing comes in Expansion or Non-Expansion and have a +/- 1-1/2° misalignment capacity or .030” per foot of shaft. Expansion units have a .100” movement capacity and can be used in high heat environments. Select between Expansion and Non-Expansion below.

Basic Dimensions
Shaft Size Bolt Distance Overall Length Overall Thickness Bolt Size
4"  7-19/32"  9-1/2"  4-7/8"  7/8"
Click Below for Full Dimensionstypeeflangebasic.jpg

Interchange
  Non-Exp Expansion
Rex: ZB2400
SKF: FYR-4-H FYR-4
Link Belt: FB22464H FEB22464H
Dodge: F4B-S2-400R F4B-S2-400RE
Browning: SFB1000NE4 SFB1000E4
Moline: 19211400 19111400
