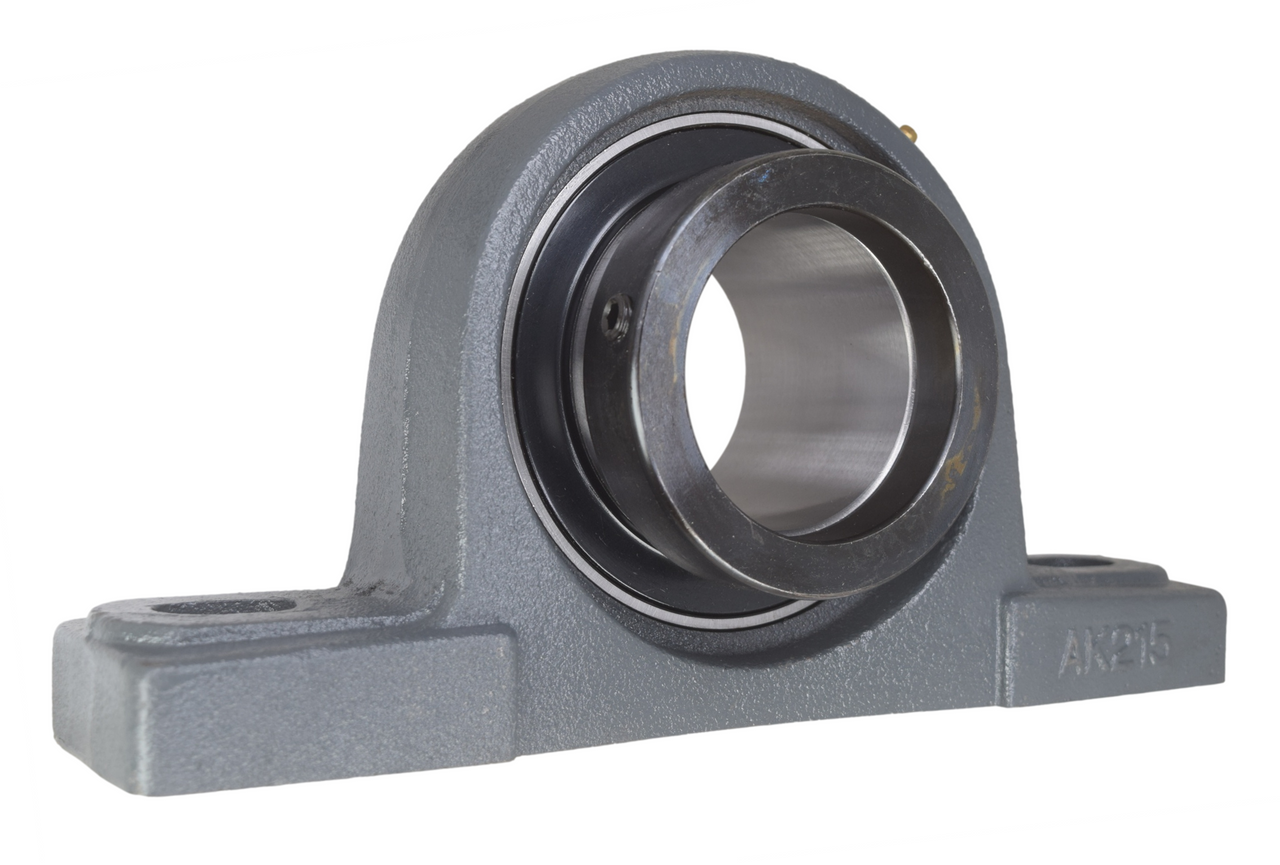

Description - 3" Pillow Block Bearing W/ Lock Collar RAK-3, VPLE 248, HCAK215-48
High quality 3" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
3" |
3.31" |
9.41" |
10.81" |
6.36" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP215-48
Browning: VPLE 248
Dodge: P2B-SXRB-218
FAFNIR: RAK-3
Hub City: -
IPTCI: NAPL215-48
Link Belt: PL-Y248N
NTN: UELPL215-300T
SKF: SYH-3-WM
Seal Master: RPL-48E & VPL-48E
