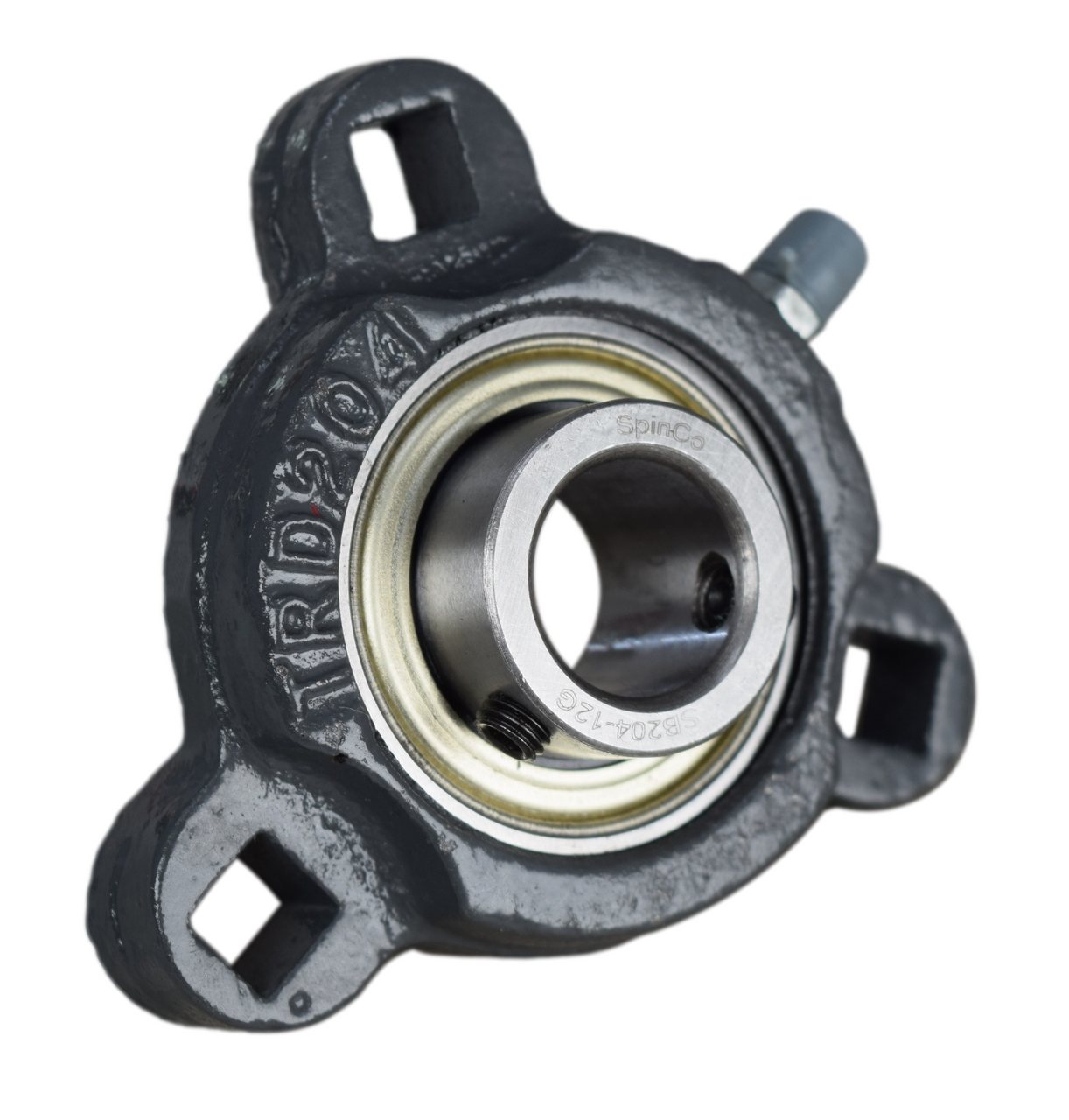

Description - 3/4" Three Bolt Flange Bearing SBTRD204-12G, FHSF3X204-12G, VF3S-112
High quality 3/4" three bolt flange bearing. The bearing has a narrow inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Bolt Circle |
Center to Edge |
Overall Thickness |
|
3/4" |
2.60" |
2.81" |
1.88" |
1.20" |
Click Above for Full Dimensions
Interchange
Peer: FHSF3X204-12G
AMI: BTM204-12
Browning: VF3S-112
Dodge: LF-SC-012
Fafnir: GSFD-3/4
