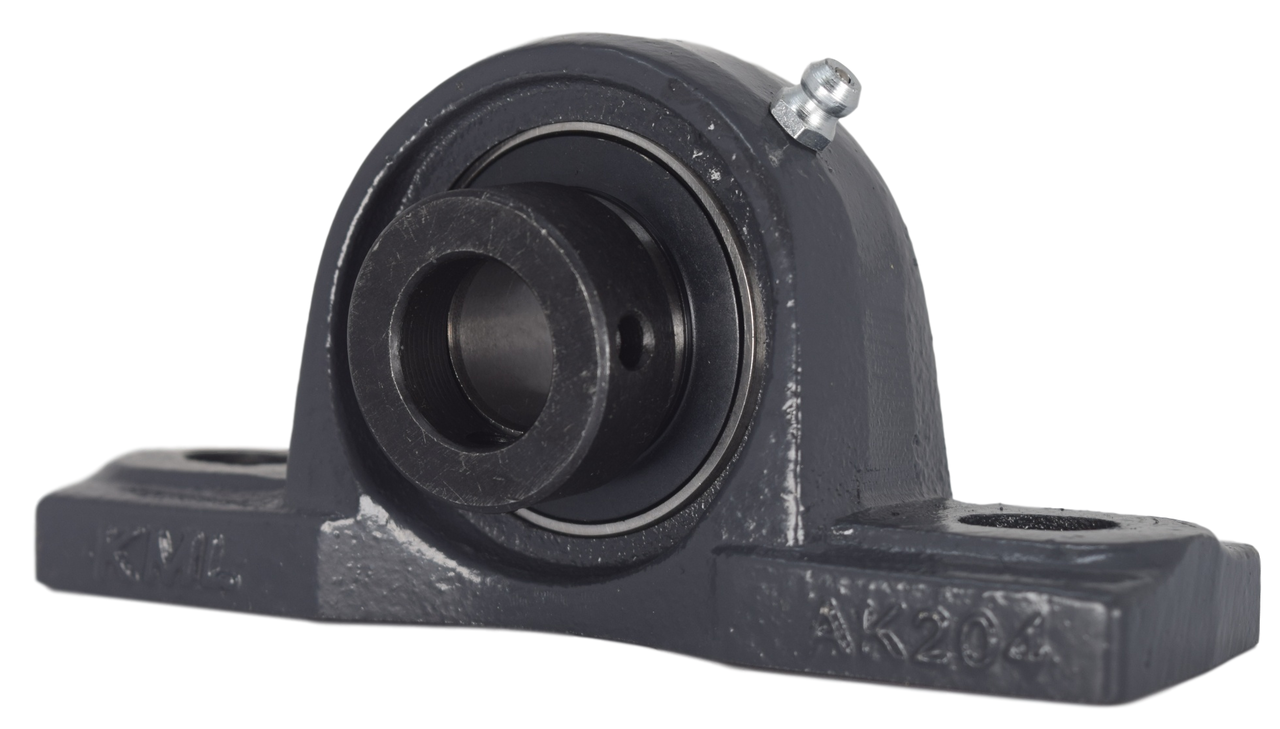

Description - 3/4" Pillow Block Bearing W/ Lock Collar RAK-3/4, VPLE 212, HCAK204-12
High quality 3/4" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
| Basic Dimensions | ||||
| Shaft Size | Shaft Height | Bolt Distance | Overall Length | Overall Height |
| 3/4" | 1.25" | 3.78" | 5.00" | 2.51" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP204-12
Browning: VPLE 212
Dodge: P2B-SXRB-012
FAFNIR: RAK-3/4
Hub City: -
IPTCI: NAPL204-12
Link Belt: PL-Y212N
NTN: UELPL204-012T
SKF: SYH-3/4-WM
Seal Master: RPL-12E & VPL-12E
