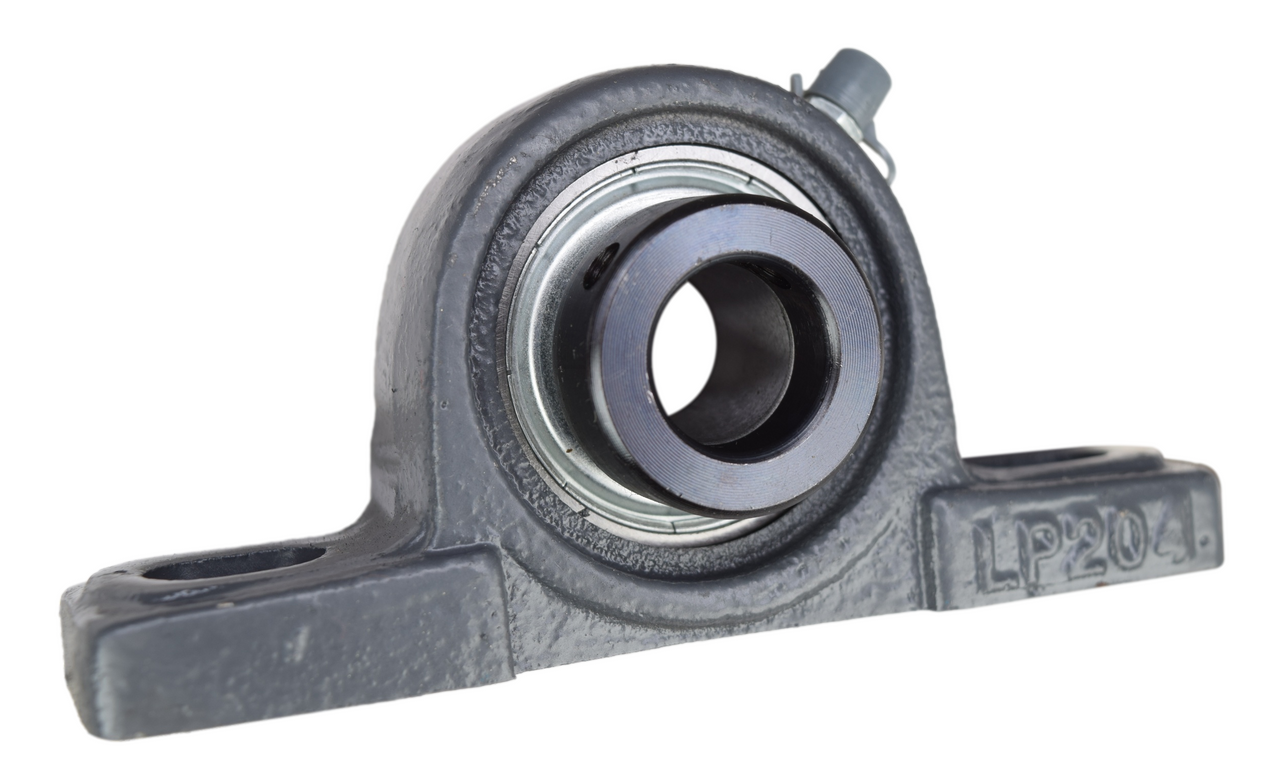

3/4" Light Duty Pillow Block Bearing W/ Lock Collar ALP204-12G, FHPWC204-12G, KHLLP204-12
$9.15
SKU:
ALP204-12G
Description - 3/4" Light Duty Pillow Block Bearing W/ Lock Collar ALP204-12G, FHPWC204-12G, KHLLP204-12
High quality light duty 3/4" pillow block bearing. The bearing has a narrow inner ring with locking collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
3/4" |
1.31" |
3.82" |
4.92" |
2.56" |
Click Above for Full Dimensions
INTERCHANGE
Peer: FHPWC204-12G
AMI: KHLLP204-12
ITPCI: SALP204-12G
