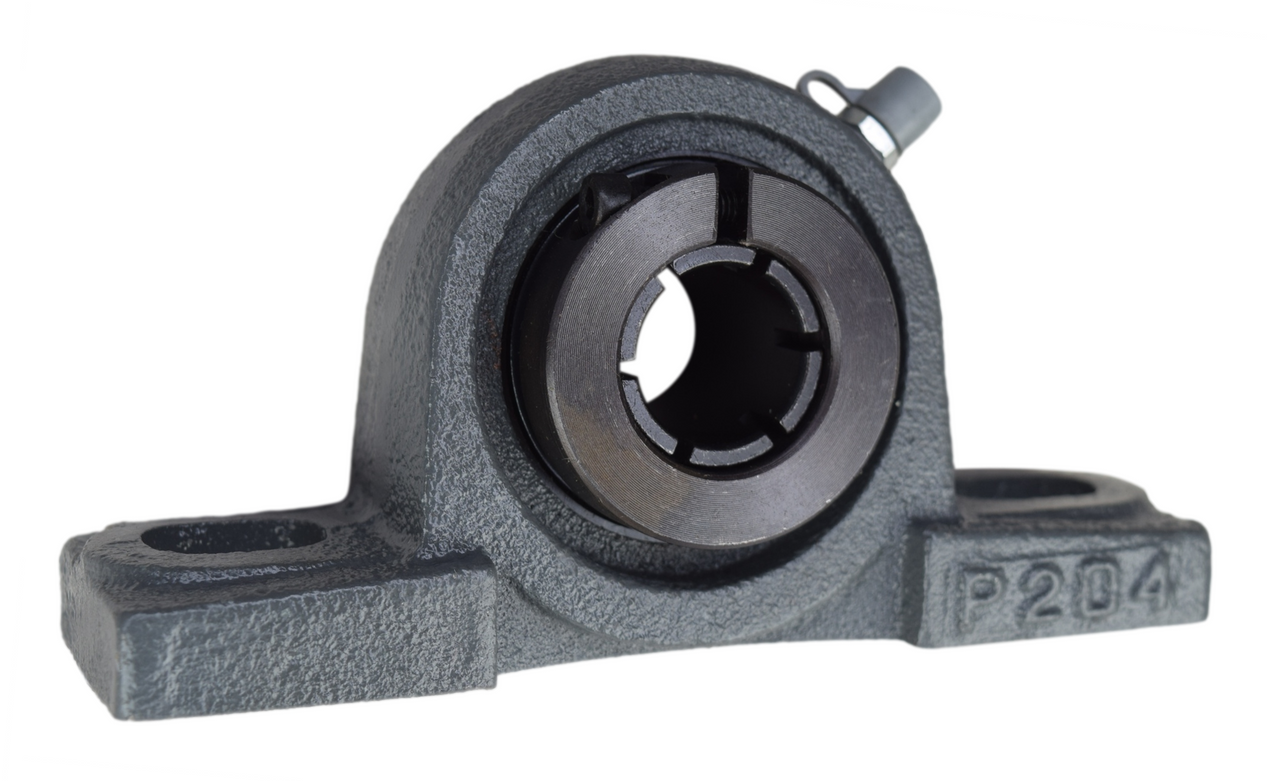

Description - 3/4" Concentric Locking Pillow Block Bearing UEP204-12, GRP204-12, P2B-DL-012
High quality 3/4" pillow block bearing. The bearing has a wide inner ring with a concentric locking collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
3/4" |
1.31" |
3.78 |
5.00" |
2.51" |
Click Above for Full Dimensions
INTERCHANGE
Browning: VPB-212
Dodge: P2B-DL-012
SealMaster: NP-12T
Peer: GRP204-12
AMI: UEP204-12
FYH: NUP204-12
The UEP204-12 3/4" pillow block bearing unit is equipped with a concentric locking collar to lock onto the shaft. The pillow block lock collar give 360 grip on the shaft. The UEP204-12 3/4" pillow block bearings are relubricatable and offer a full-width inner ring for added stability. The UEP204-12 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads. Applications for the UEP204-12 3/4" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
