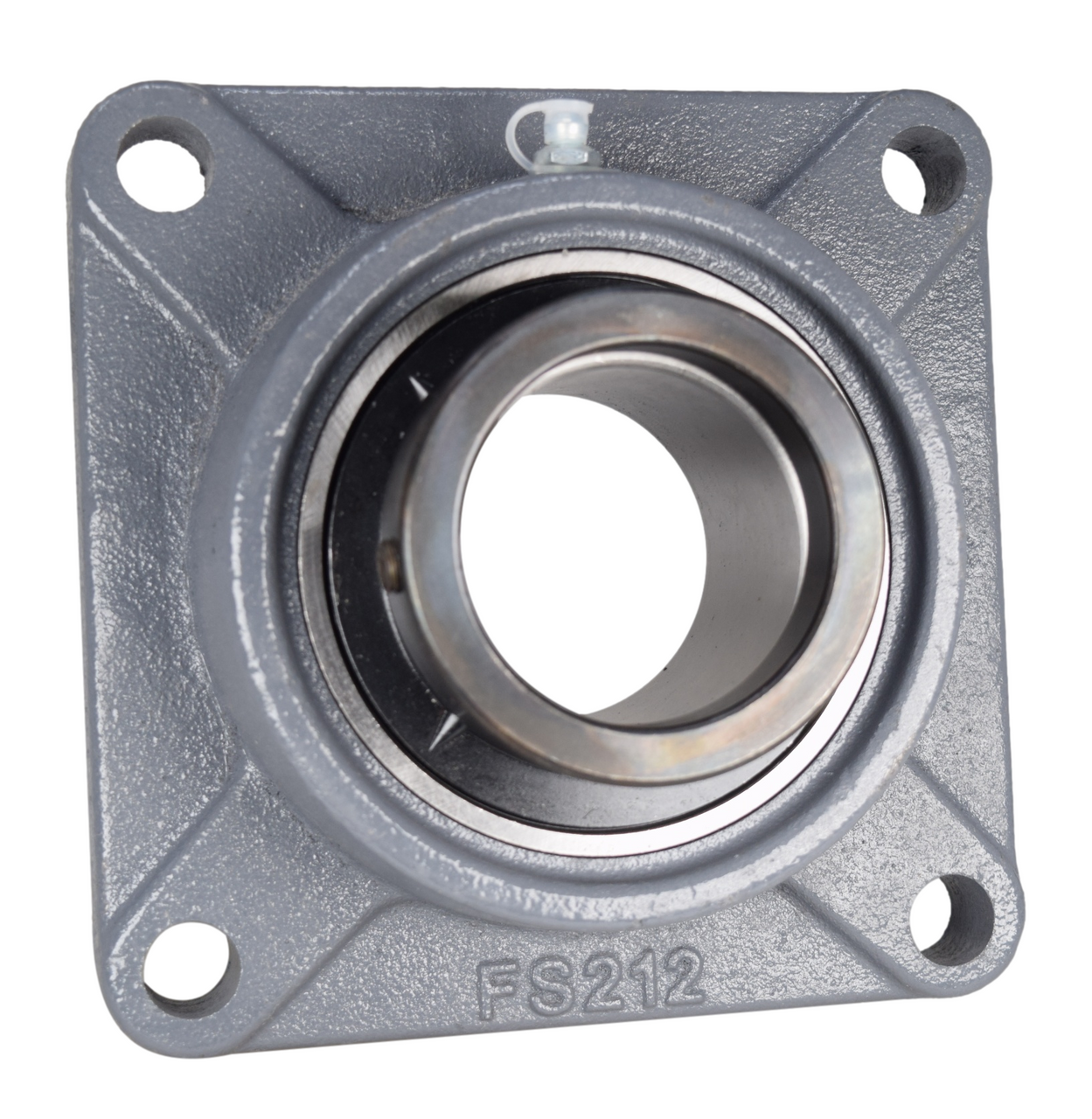

Description - 2-7/16" Four Bolt Flange Bearing W/ Lock Collar HCFS212-39
High quality 2-7/16" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
2-7/16" |
5.63" |
6.89" |
3.18" |
0.67" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS212-39
AMI: UGSLF212-39
Browning: VF4E-239
Dodge: P4B-SXR-207
FAFNIR: RCJ-2-7/16
Hub City: -
IPTCI: NANF212-39
Link Belt: F3Y239N
NTN: UELFU211-207T
SKF: FY-2-7/16-WM
Seal Master: RF-39E & VF-39E
