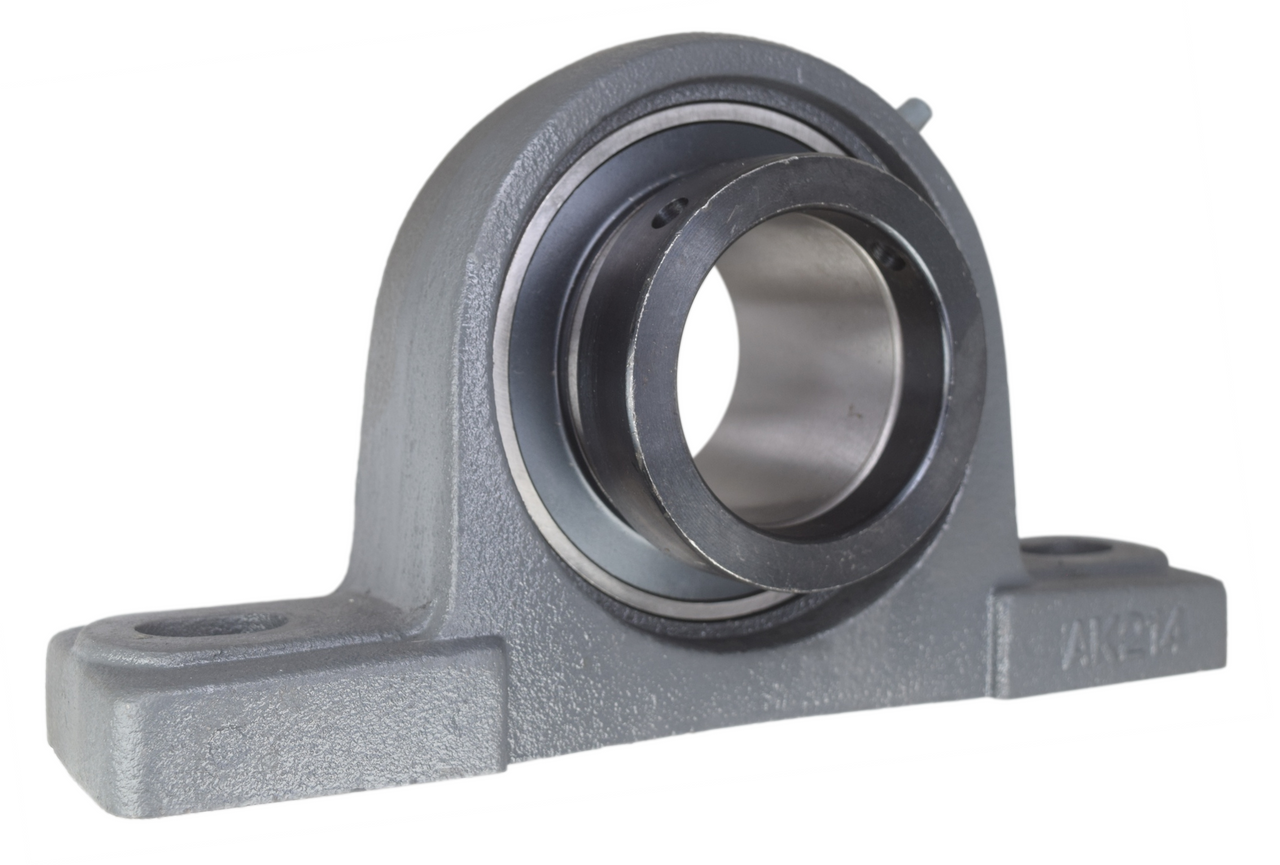

Description - 2-3/4" Pillow Block Bearing W/ Lock Collar RAK-2-3/4, VPLE 244, HCAK214-44
High quality 2-3/4" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
2-3/4" |
3.25" |
9.13" |
11.57" |
6.29" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP214-44
Browning: VPLE 244
Dodge: P2B-SXRB-212
FAFNIR: RAK-2-3/4
Hub City: -
IPTCI: NAPL214-44
Link Belt: PL-Y244N
NTN: UELPL213-212T
SKF: SYH-2-3/4-WM
Seal Master: RPL-44E & VPL-44E
