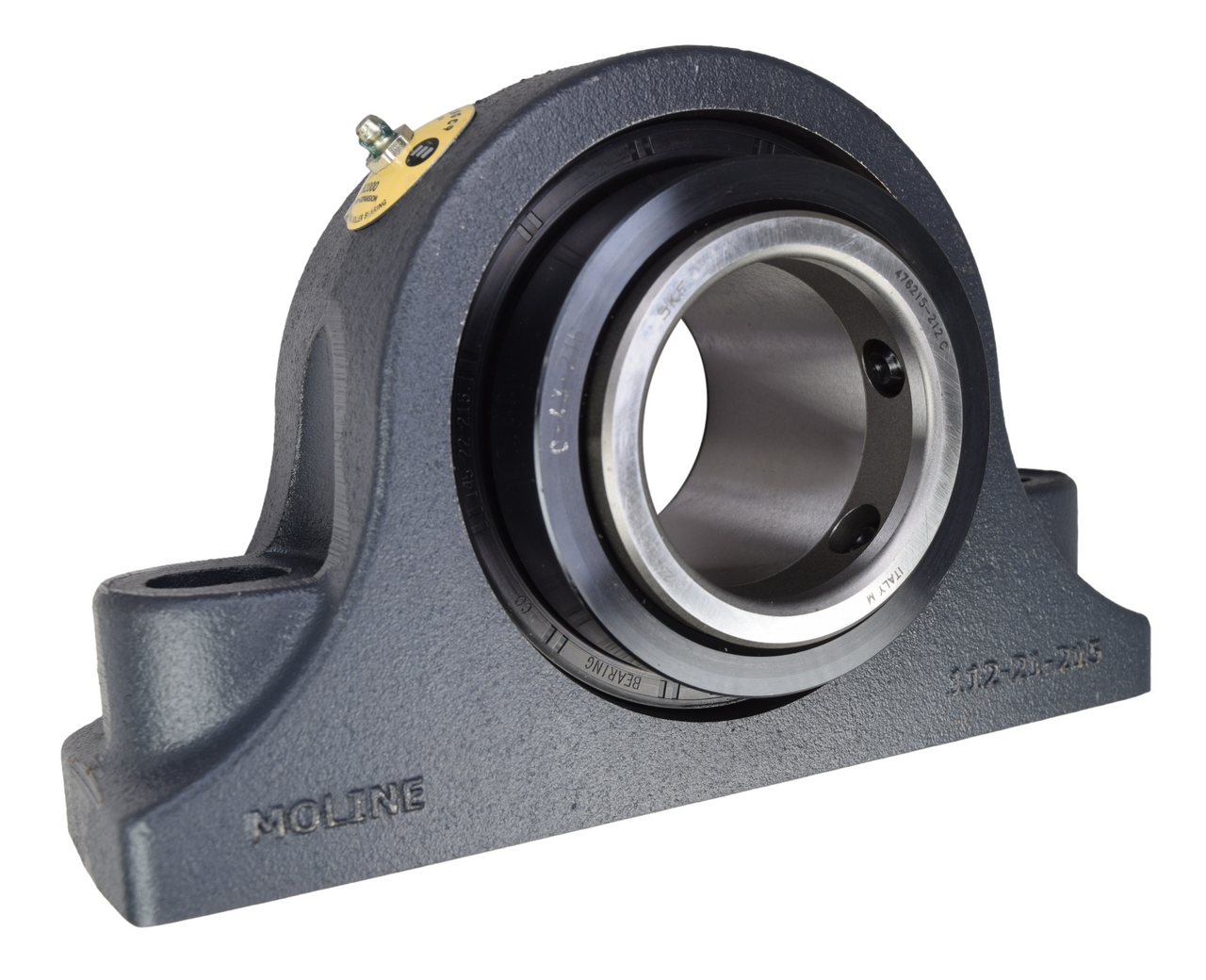

2-3/4" M2000 Heavy Duty Two Bolt Pillow Block Bearing 19121212 / 19221212

These heavy-duty pillow block bearings are made with SKF and Timken Spherical Roller Bearing inserts for the best performance in radial loads. Equal to Dodge and SKF S2000 series pillow block bearings, these heavy duty pillow block bearings are made by Moline Bearing Co. in the USA.

The housings are made of USA Class 30 cast iron. The bearings are genuine SKF and Timken Spherical Roller Bearings that use vacuum degassed steel which gives rollers and races added life, provides superior load and speed characteristics. Drive collar includes 2 headless set screws spaced 65° apart, locking it to the shaft. High radial load capacities. Completely assembled, adjusted, sealed and pre-lubricated at the factory and are
assembled with a standard triple lip contact seals. It can be assembled with a balanced labyrinth seal for high heat or high-speed environments (up to 350°).

Each bearing comes in Expansion or Non-Expansion and have a +/- 1-1/2° misalignment capacity or .030” per foot of shaft. Expansion units have a .100” movement capacity and can be used in high heat environments. Select between Expansion and Non-Expansion below.

Click Below for Full Dimensions
