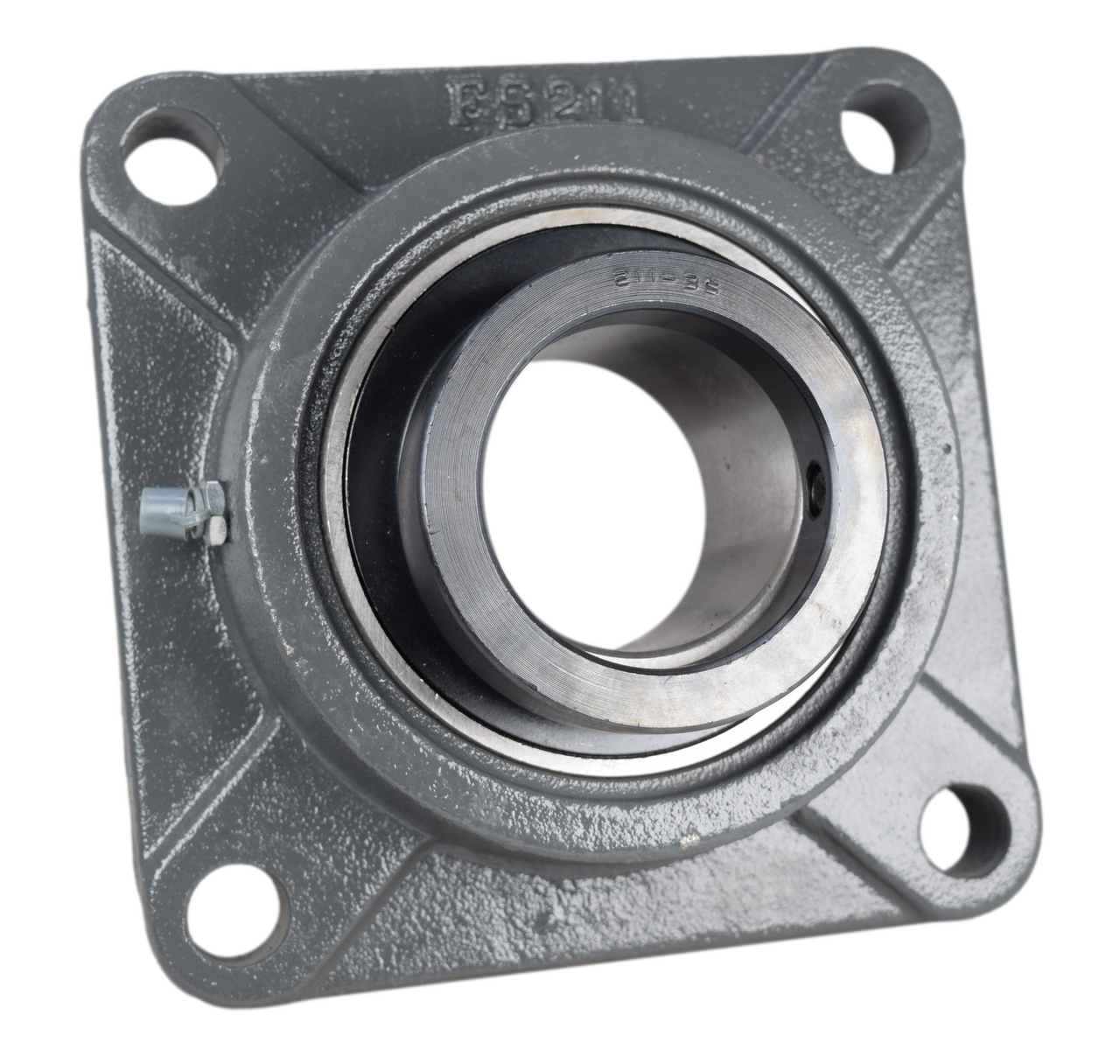

Description - 2-3/16" Four Bolt Flange Bearing W/ Lock Collar HCFS211-35
High quality 2-3/16" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
2-3/16" |
5.12" |
6.38" |
2.94" |
0.67" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS211-35
AMI: UGSLF211-35
Browning: VF4E-235
Dodge: P4B-SXR-203
FAFNIR: RCJ-2-3/16
Hub City: -
IPTCI: NANF211-35
Link Belt: F3Y235N
NTN: UELFU211-203T
SKF: FY-2-3/16-WM
Seal Master: RF-35E & VF-35E
