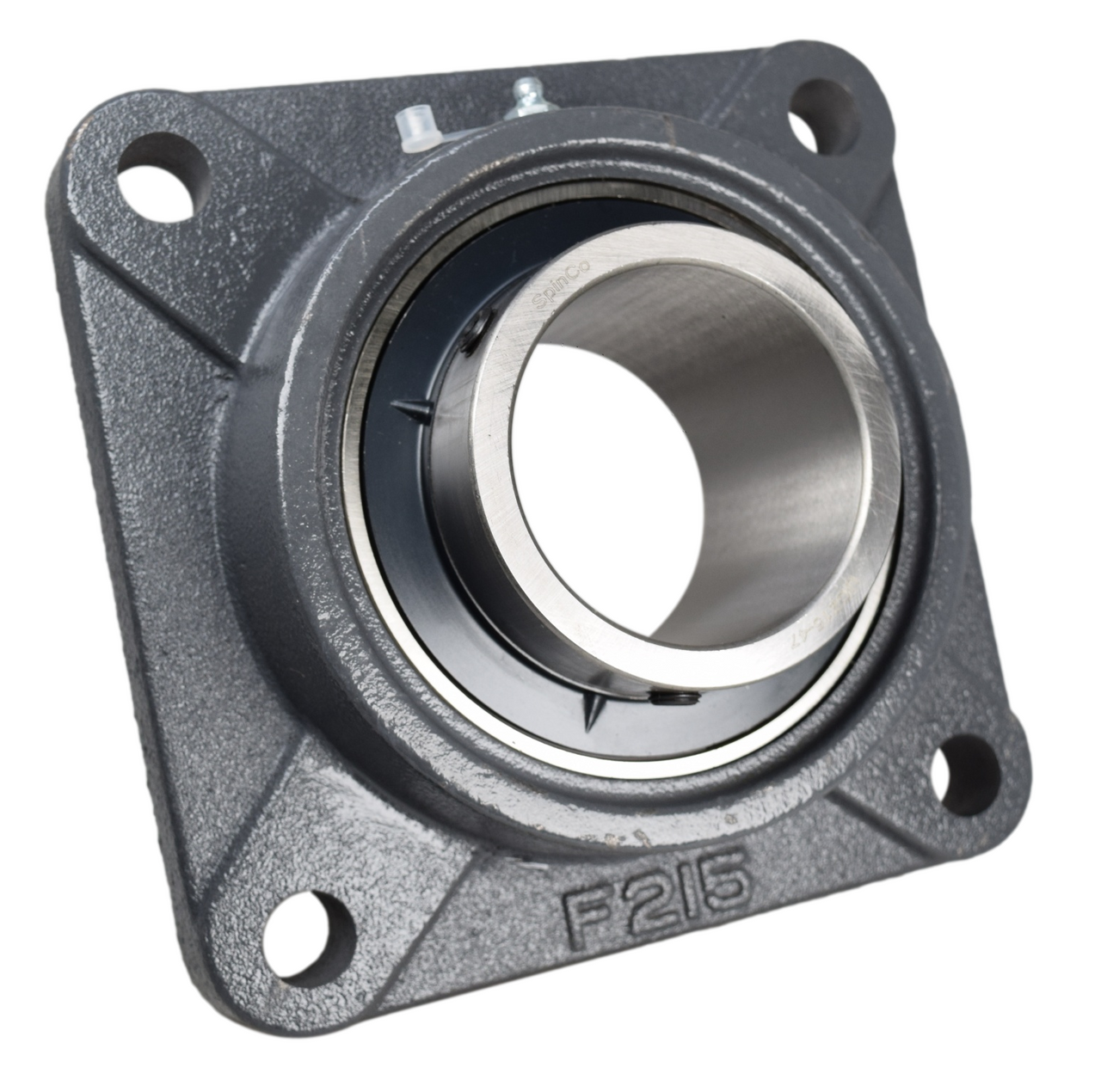

Description - 2-15/16" Four Bolt Flange Bearing UCF215-47, F4B-SC-215, VF4S-247, SF-2-15/16
High quality 2-15/16" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
2-15/16" |
6.26" |
7.87" |
3.09" |
0.75" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCF215-47
Browning: VF4S-247
Dodge: F4B-SC-215
Fafnir: RCJC-2-15/16
Fafnir: YCJ-2-15/16
Link-Belt: F3-U247N
NSK: UCF215-47
NTN: UCF215-215T
Peer: FHSFJ215-47G
RHP: SF-2-15/16
Sealmaster: SF-2-15/16
SKF: FY-2-15/16-TM
