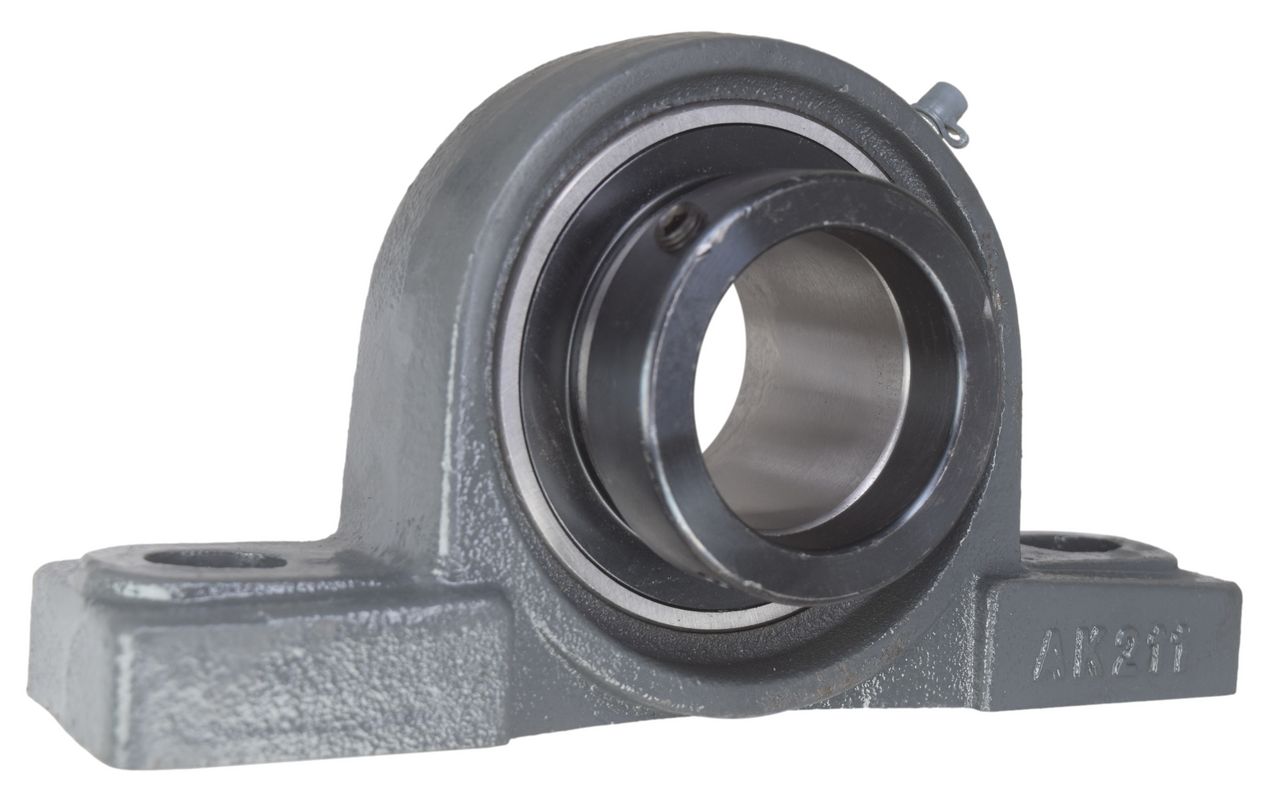

Description - 2-1/8" Pillow Block Bearing W/ Lock Collar RAK-2-1/8, VPLE 234, HCAK211-34
High quality 2-1/8" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
2-1/8" |
2.44" |
6.77" |
8.63" |
4.90" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP211-34
Browning: VPLE 234
Dodge: P2B-SXRB-202
FAFNIR: RAK-2-1/8
Hub City: -
IPTCI: NAPL211-34
Link Belt: PL-Y234N
NTN: UELPL211-202T
SKF: SYH-2-1/8-WM
Seal Master: RPL-34E & VPL-34E
