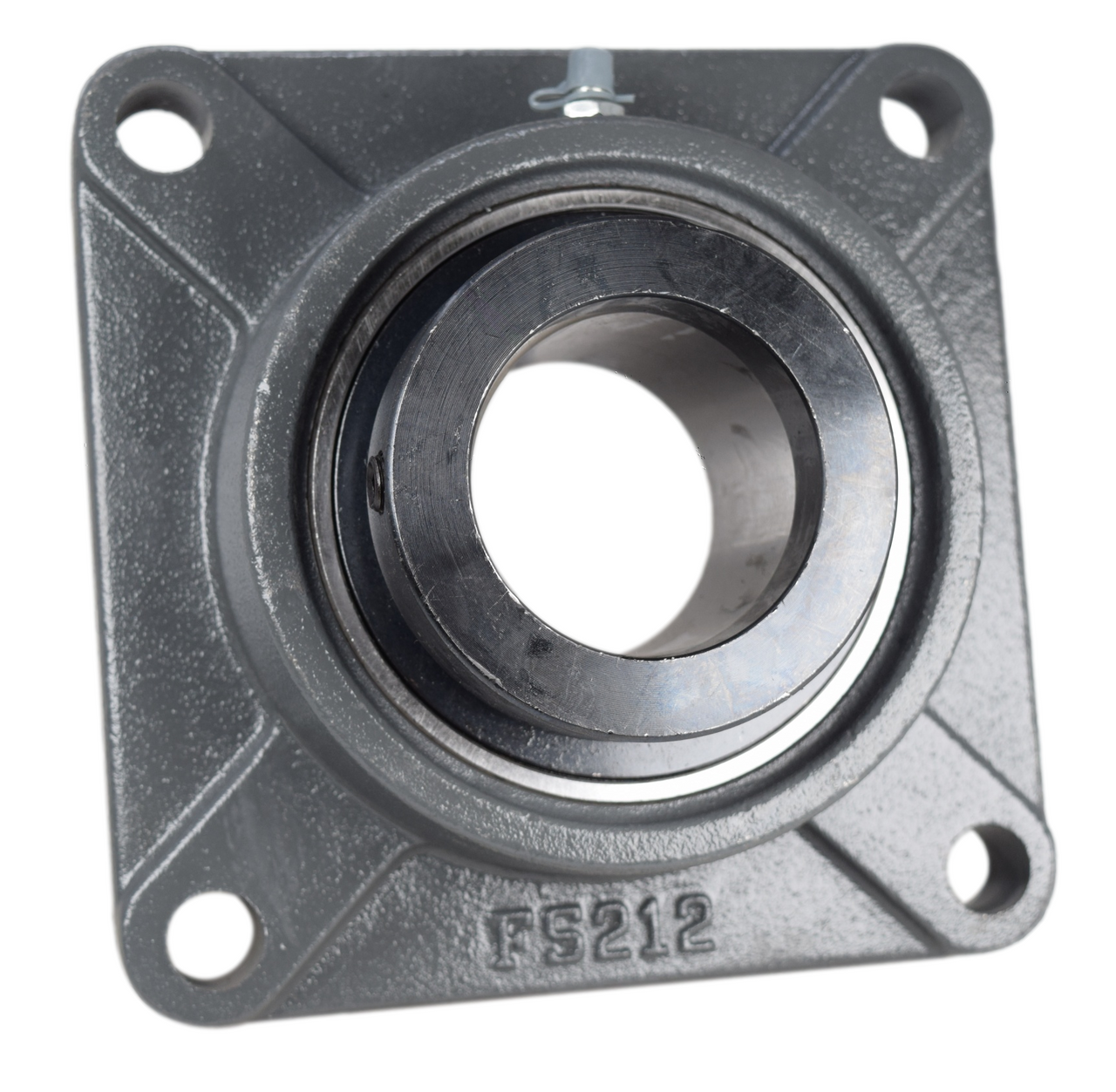

Description - 2-1/4" Four Bolt Flange Bearing W/ Lock Collar HCFS212-36
High quality 2-1/4" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
2-1/4" |
5.63" |
6.89" |
3.18" |
0.67" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS212-36
AMI: UGSLF212-36
Browning: VF4E-236
Dodge: P4B-SXR-204
FAFNIR: RCJ-2-1/4
Hub City: -
IPTCI: NANF212-36
Link Belt: F3Y236N
NTN: UELFU212-204T
SKF: FY-2-1/4-WM
Seal Master: RF-36E & VF-36E
