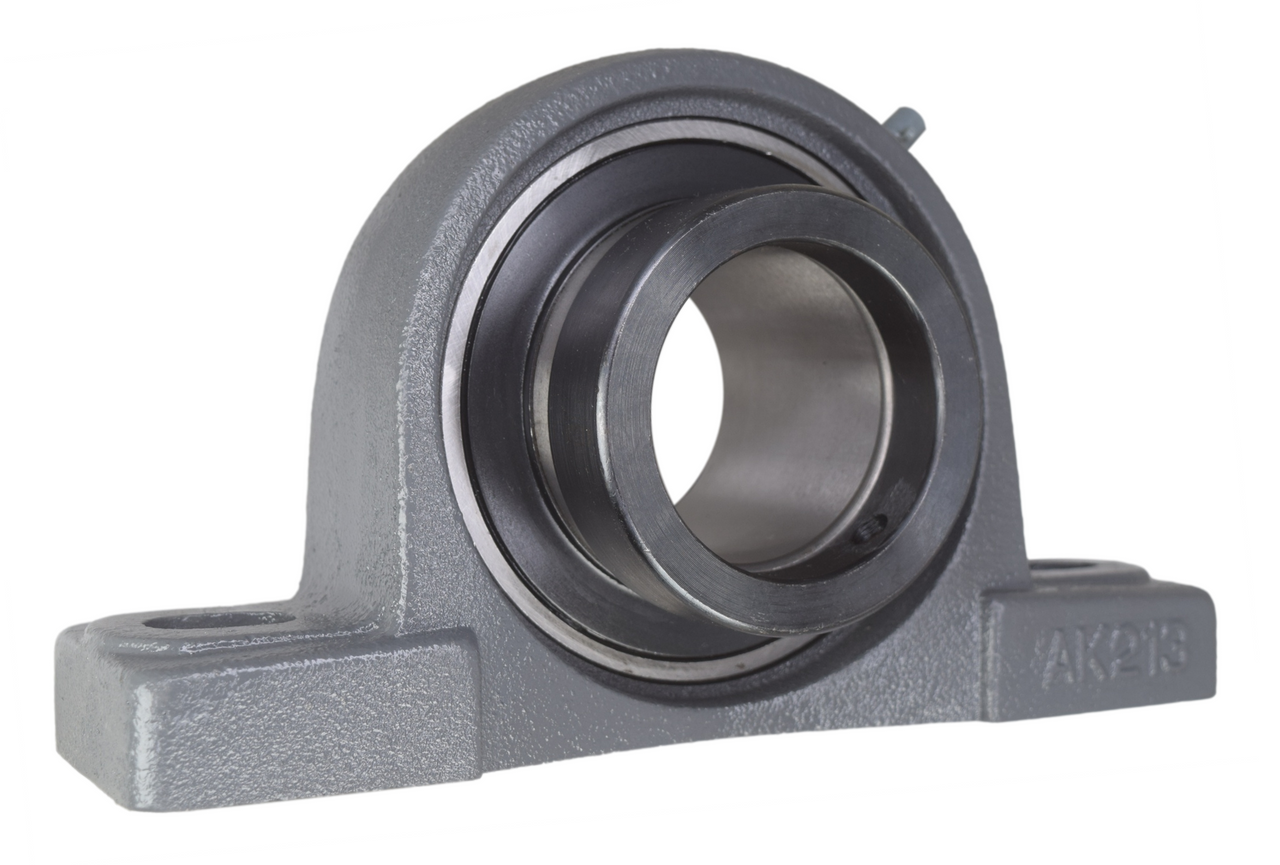

Description - 2-1/2" Pillow Block Bearing W/ Lock Collar RAK-2-1/2, VPLE 240, HCAK213-40
High quality 2-1/2" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
2-1/2" |
2.69" |
7.99" |
10.44" |
5.87" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP213-40
Browning: VPLE 240
Dodge: P2B-SXRB-208
FAFNIR: RAK-2-1/2
Hub City: -
IPTCI: NAPL213-40
Link Belt: PL-Y240N
NTN: UELPL213-208T
SKF: SYH-2-1/2-WM
Seal Master: RPL-40E & VPL-40E
