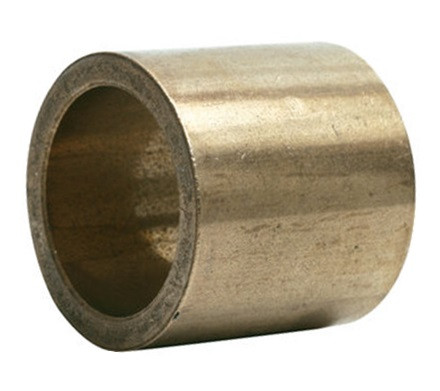

Description - 1"x1-1/4"x3/4" Sintered Bronze Sleeve Bushing
1" X 1-1/4" X 3/4" Bronze Sleeve Bushing
Description:
High quality, oil impregnated bronze material that does not require added grease. Has a higher K-strength than the industry standard. Made in the USA. SAE 841.
Technical Data:
| Attributes: | Values: |
| Nominal I.D. (in) | 1 |
| Nominal O.D. (in) | 1-1/4 |
| I.D. Min (in) | 1.0030 |
| I.D. Max (in) | 1.0040 |
| O.D. Min (in) | 1.2530 |
| O.D. Max (in) | 1.2540 |
| Nominal Length (in) | 3/4 |
| Length (in) | 0.7500 |
| Oil Content | 0.19 |
| V Value (Max) | 1200 |
| PV Value (Max) | 50000 |
| Interchangeable with | AA-1232-6 |
| Interchangeable with | B1620-6 |
| Interchangeable with | P-102-6 |
| Interchangeable with | EP162012 |
