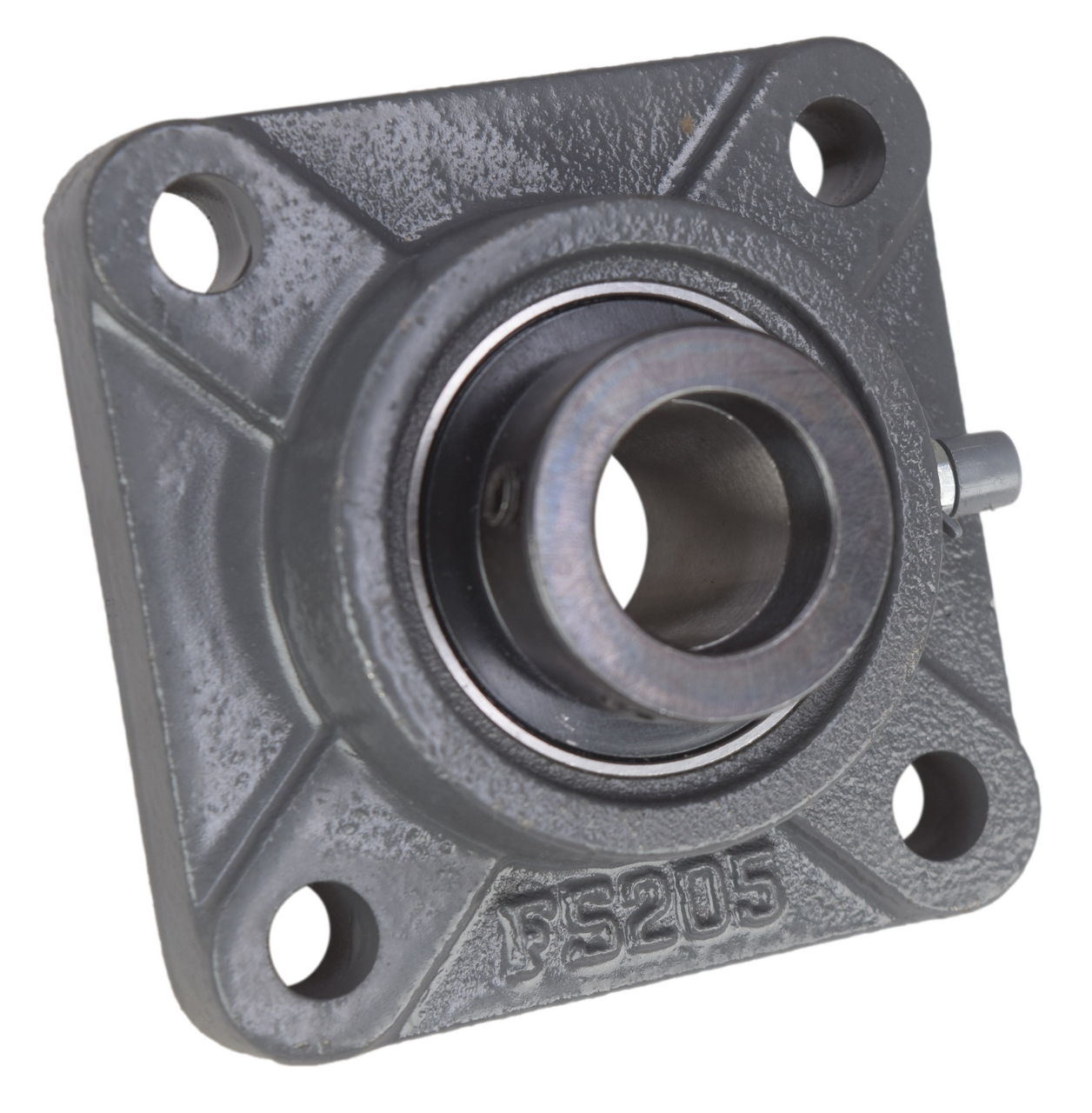

15/16" Four Bolt Flange Bearing W/ Lock Collar HCFS205-15 VF4E-215 RCJ-15/16 P4B-SXR-015
$12.51
SKU:
HCFS205-15
Description - 15/16" Four Bolt Flange Bearing W/ Lock Collar HCFS205-15 VF4E-215 RCJ-15/16 P4B-SXR-015
High quality 15/16" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
15/16" |
2.76" |
3.66" |
1.81" |
.45" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS205-15
AMI: UGSLF205-15
Browning: VF4E-215
Dodge: P4B-SXR-015
FAFNIR: RCJ-15/16
Hub City: -
IPTCI: NANF205-15
Link Belt: F3Y215N
NTN: UELFU205-015T
SKF: FY-15/16-WM
Seal Master: RF-15E & VF-15E
