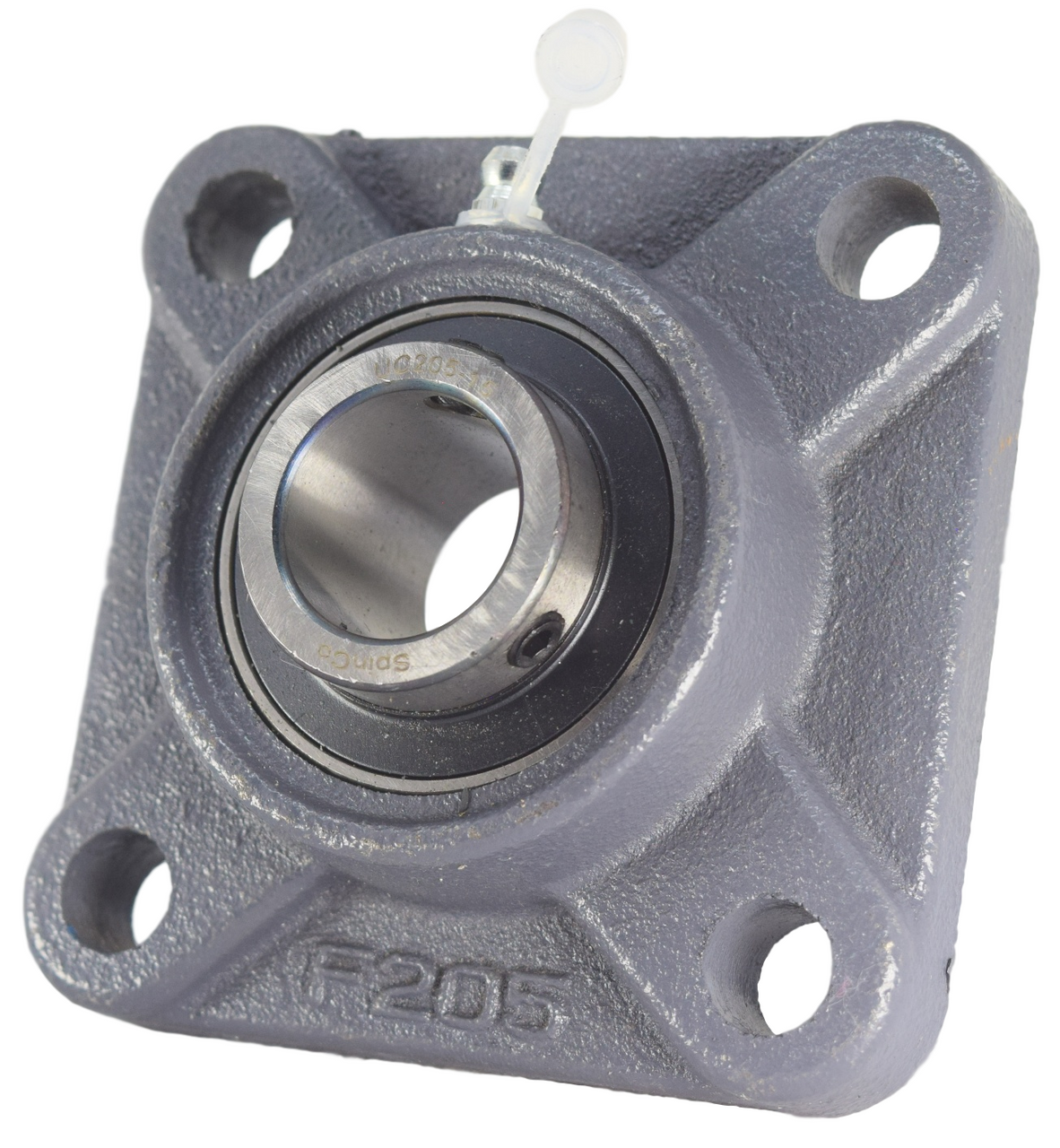

Description - 15/16" Four Bolt Flange Bearing UCF205-15, F4B-SC-015, VF4S-215, SF-15/16
High quality 15/16" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
15/16" |
2.76" |
3.74" |
1.41" |
0.45" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCF205-15
Browning: VF4S-215
Dodge: F4B-SC-015
Fafnir: RCJC-15/16
Fafnir: YCJ-15/16
Link-Belt: F3-U215N
NSK: UCF205-15S
NTN: UCF205-015T
Peer: FHSFJ205-15G
RHP: SF-15/16
Sealmaster: SF-15/16
SKF: FY-15/16-TM
