15/16" Ductile Iron Two Bolt Flange Bearing W/ Lock Collar SAFTD205-15G, GVFTD-15/16, VF2E-115M
$13.88
SKU:
SAFTD205-15G
Description - 15/16" Ductile Iron Two Bolt Flange Bearing W/ Lock Collar SAFTD205-15G, GVFTD-15/16, VF2E-115M

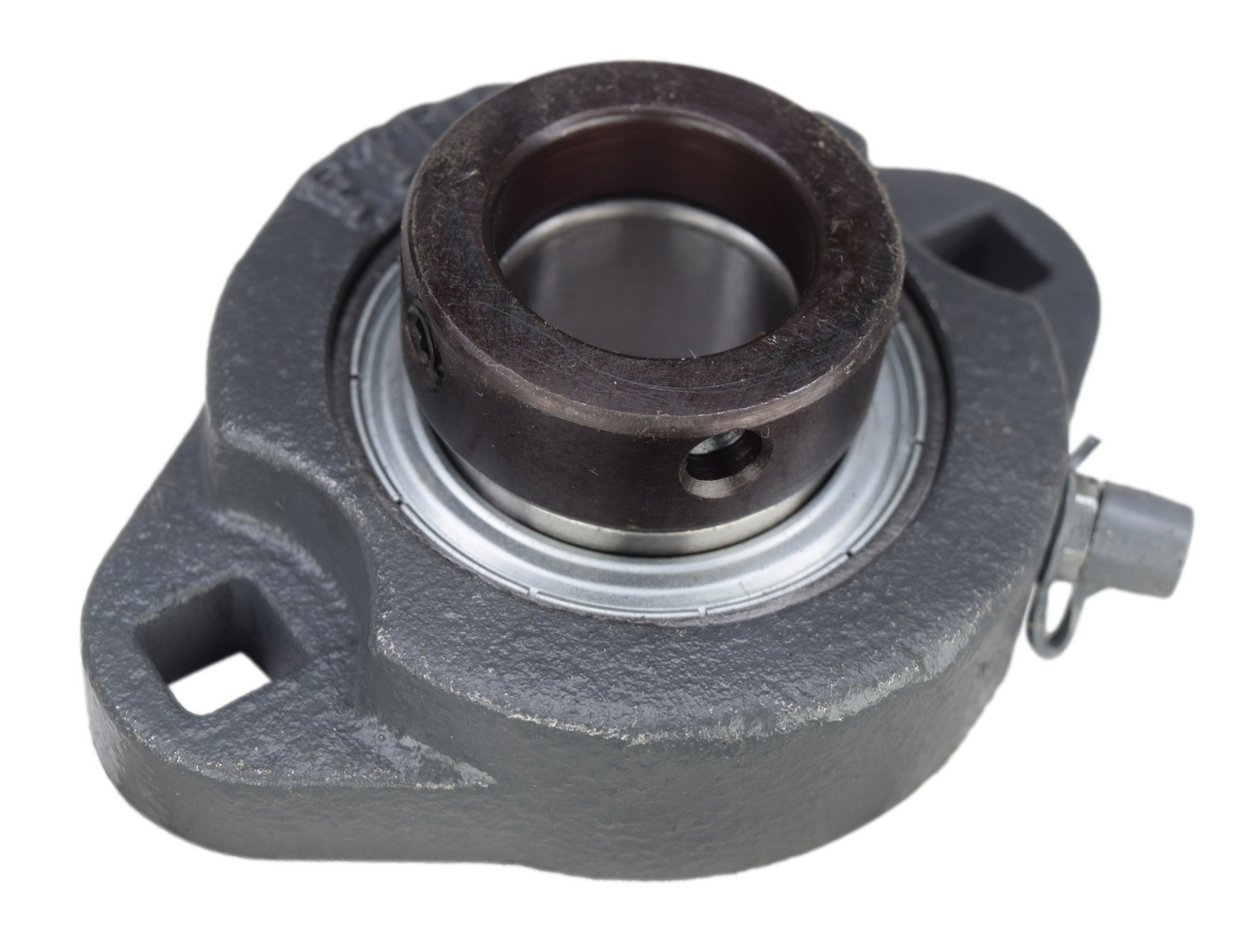

High quality light duty 15/16" two bolt flange bearing. The bearing has a narrow inner ring with cam lock collar for attaching to the shaft. Housing is ductile iron with square bolt holse and a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
15/16" |
2.99" |
3.74" |
2.72" |
1.34" |
Click Above for Full Dimensions
Interchanges with
Peer: FHFX205-15G
AMI: KHFX205-15
Browning: VF2E-115M
FAFNIR: GVFTD-15/16
IPTCI: SALF205-15GH4
Link Belt: FX-WG215U
SealMaster: LTF-15E
