1" Four Bolt Flange Bearing W/ Lock Collar HCFS205-16 VF4E-216 RCJ-1 P4B-SXR-100
$12.51
SKU:
HCFS205-16

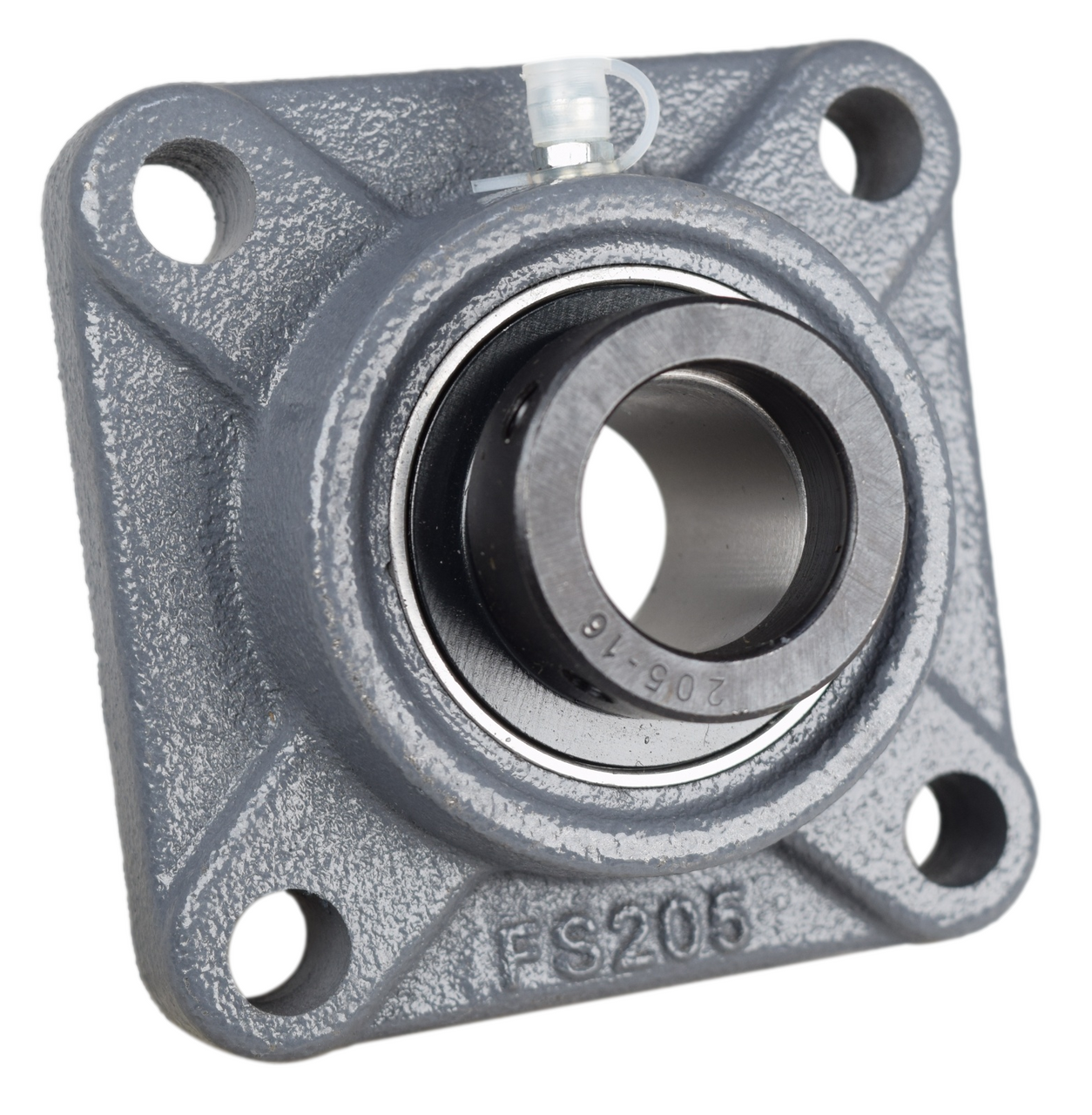

Description - 1" Four Bolt Flange Bearing W/ Lock Collar HCFS205-16 VF4E-216 RCJ-1 P4B-SXR-100
High quality 1" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1" |
2.76" |
3.66" |
1.81" |
.45" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS205-16
AMI: UGSLF205-16
Browning: VF4E-216
Dodge: P4B-SXR-100
FAFNIR: RCJ-1
Hub City: -
IPTCI: NANF205-16
Link Belt: F3Y216N
NTN: UELFU205-100T
SKF: FY-1-WM
Seal Master: RF-16E & VF-16E
