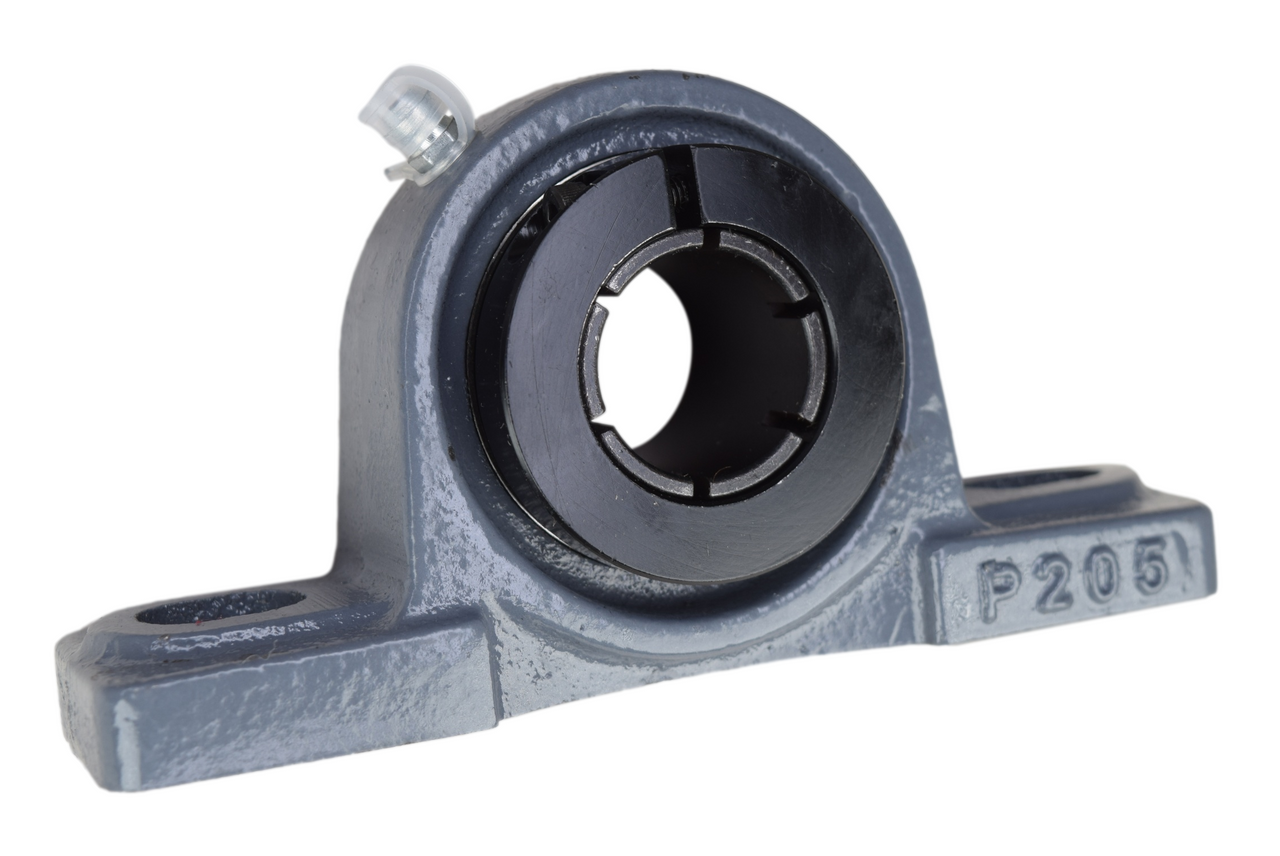

Description - 1" Concentric Locking Pillow Block Bearing UEP205-16, GRP205-16, P2B-DL-100
High quality 1" pillow block bearing. The bearing has a wide inner ring with a concentric locking collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1" |
1.44" |
4.13" |
5.51" |
2.74" |
Click Above for Full Dimensions
INTERCHANGE
Browning: VPB-216
Dodge: P2B-DL-100
SealMaster: NP-16T
Peer: GRP205-16
AMI: UEP205-16
FYH: NUP205-16
