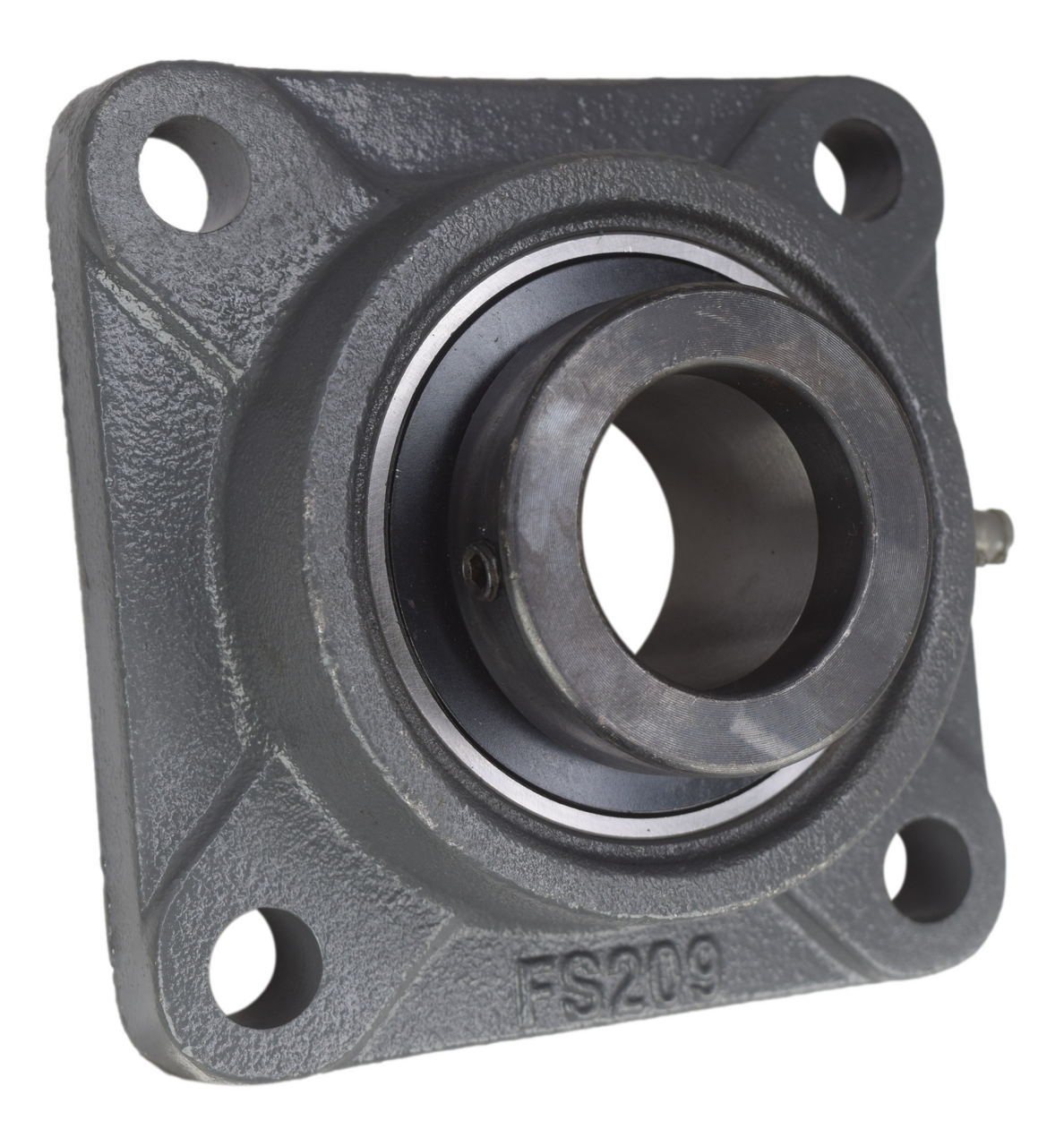

1-5/8" Four Bolt Flange Bearing W/ Lock Collar HCFS209-26, VF4E-226, RCJ-1-5/8
$30.78
SKU:
HCFS209-26
Description - 1-5/8" Four Bolt Flange Bearing W/ Lock Collar HCFS209-26, VF4E-226, RCJ-1-5/8
High quality 1-5/8" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-5/8" |
4.13" |
5.32" |
2.32" |
0.63" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS209-26
AMI: UGSLF209-26
Browning: VF4E-226
Dodge: P4B-SXR-110
FAFNIR: RCJ-1-5/8
Hub City: -
IPTCI: NANF209-26
Link Belt: F3Y226N
NTN: UELFU209-110T
SKF: FY-1-5/8-WM
Seal Master: RF-26E & VF-26E
