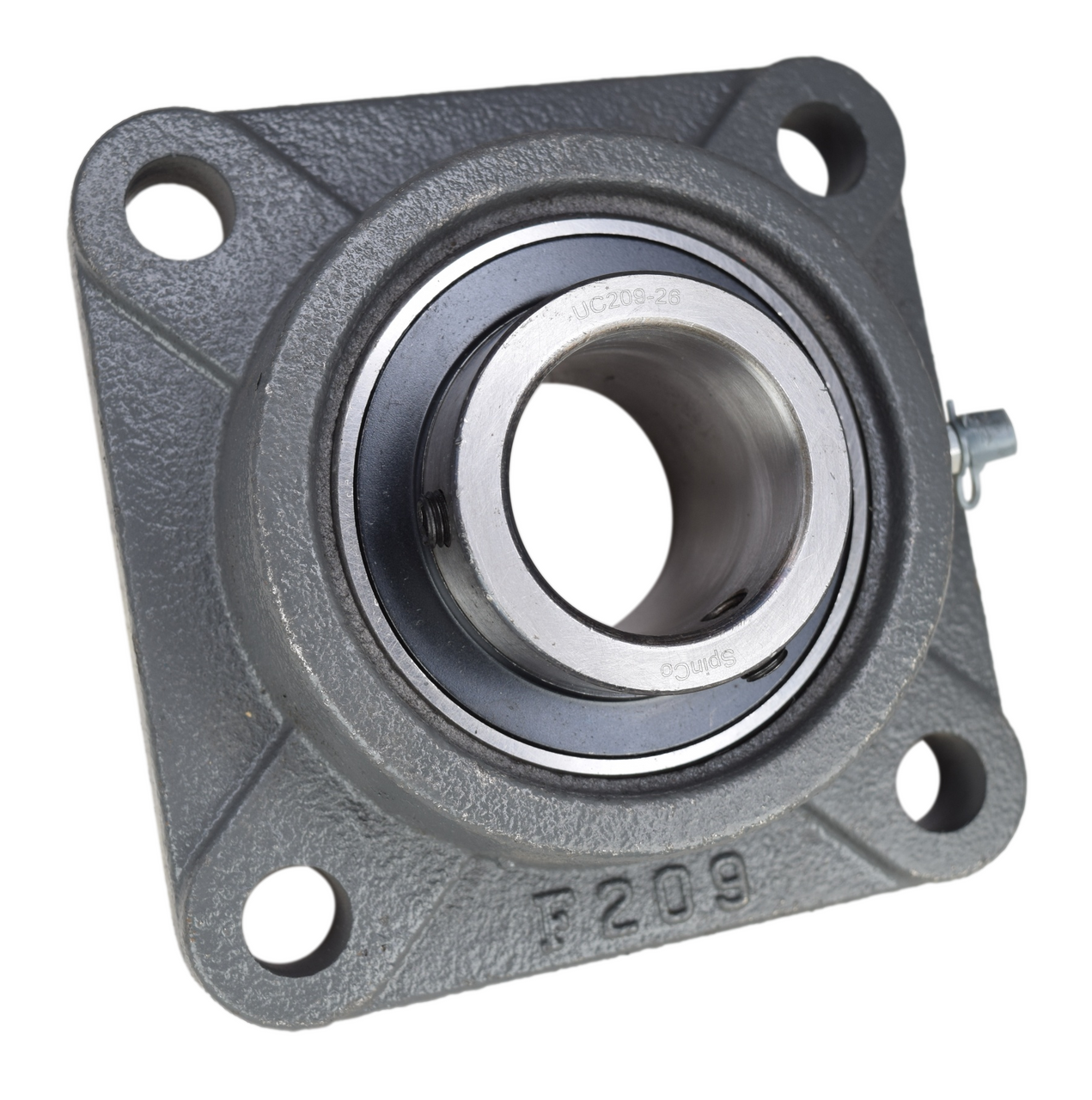

Description - 1-5/8" Four Bolt Flange Bearing UCF209-26, F4B-SC-110, VF4S-226, SF-1-5/8
High quality 1-5/8" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-5/8" |
4.13" |
5.39" |
2.06" |
0.63" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCF209-26
Browning: VF4S-226
Dodge: F4B-SC-110
Fafnir: RCJC-1-5/8
Fafnir: YCJ-1-5/8
Link-Belt: F3-U226N
NSK: UCF209-26S
NTN: UCF209-110T
Peer: FHSFJ209-26G
RHP: SF-1-5/8
Sealmaster: SF-1-5/8
SKF: FY-1-5/8-TM
