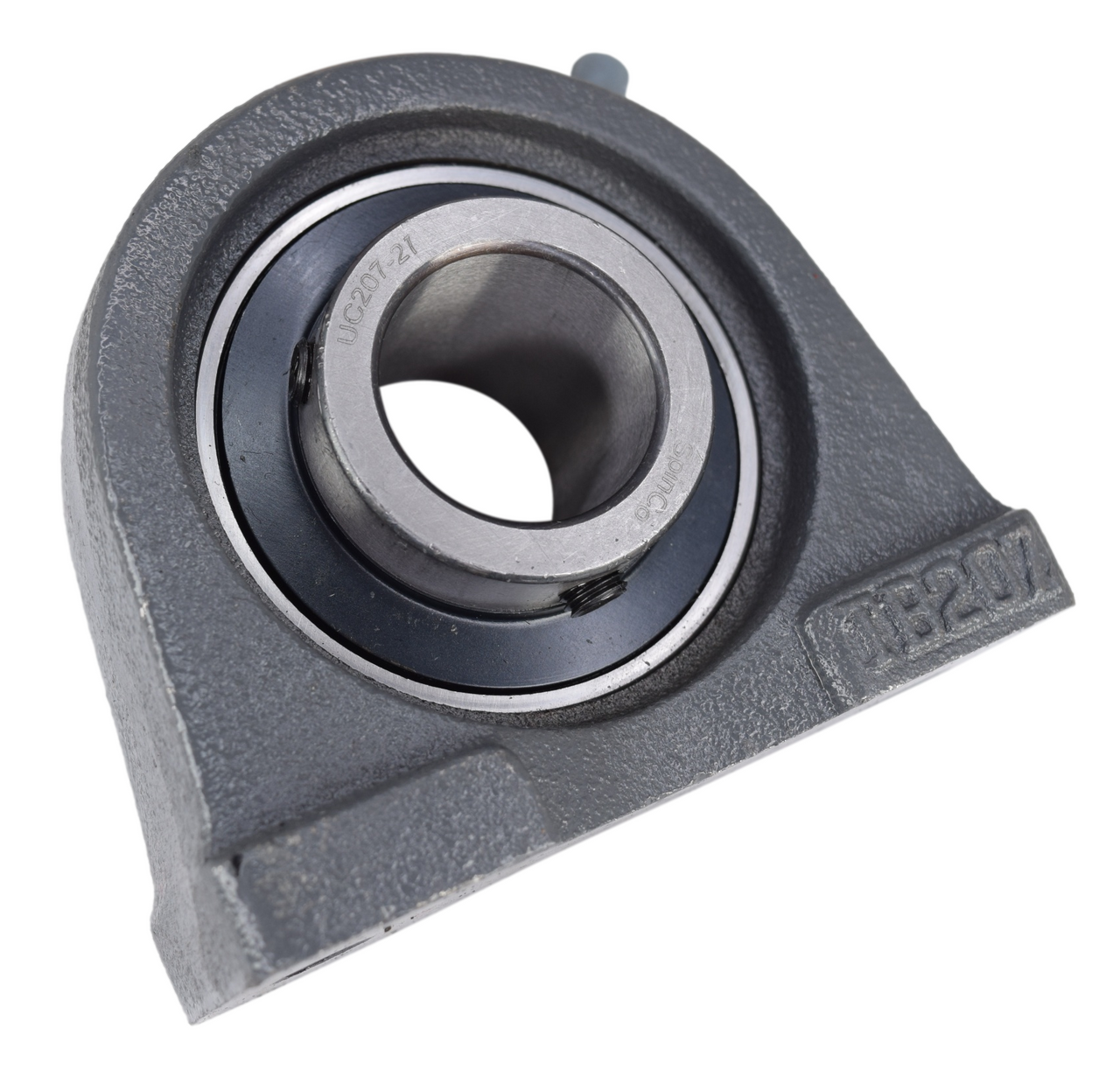

Description - 1-5/16" Tapped Base Pillow Block Bearing UCPA207-21
High quality 1-5/16" tapped base pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1-5/16" |
1.88" |
3.25" |
4.25" |
3.75" |
Click Above for Full Dimensions
INTERCHANGE
Peer: UCPAS207-21
AMI: UCTB207-21
Browning: VTBS-221
Dodge: TB-SC-105
FAFNIR: YTB-1-5/16
IPTCI: UCPA207-21
Link Belt: PT3-U221N
NTN: UCUP207-105T
Sealmaster: TB-21
