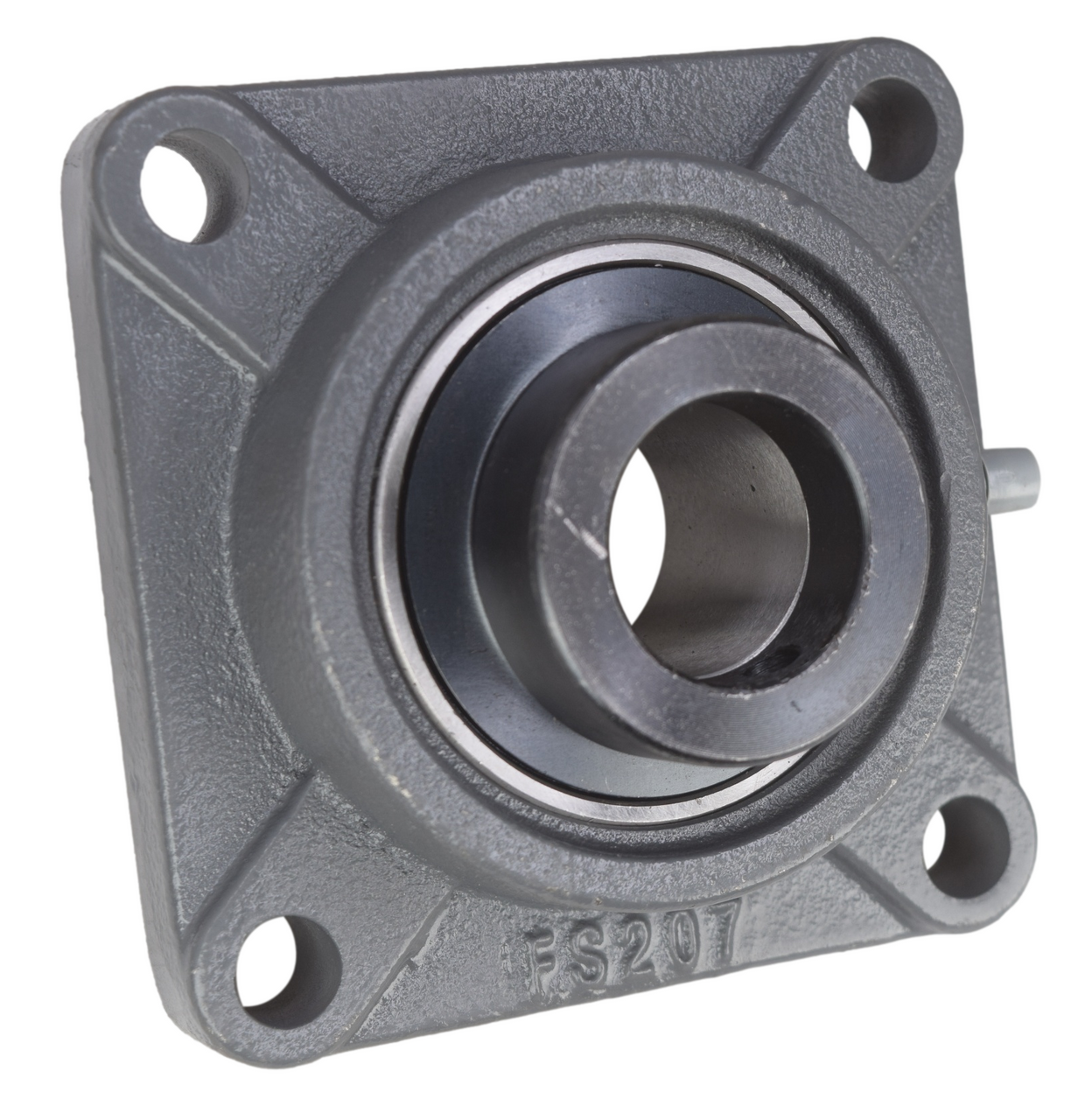

1-5/16" Four Bolt Flange Bearing W/ Lock Collar HCFS207-21 VF4E-221 RCJ-1-5/16 P4B-SXR-105
$18.43
SKU:
HCFS207-21
Description - 1-5/16" Four Bolt Flange Bearing W/ Lock Collar HCFS207-21 VF4E-221 RCJ-1-5/16 P4B-SXR-105
High quality 1-5/16" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-5/16" |
3.62" |
4.59" |
2.10" |
0.51" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS207-21
AMI: UGSLF207-21
Browning: VF4E-221
Dodge: P4B-SXR-105
FAFNIR: RCJ-1-5/16
Hub City: -
IPTCI: NANF207-21
Link Belt: F3Y221N
NTN: UELFU207-105T
SKF: FY-1-5/16-WM
Seal Master: RF-21E & VF-21E
