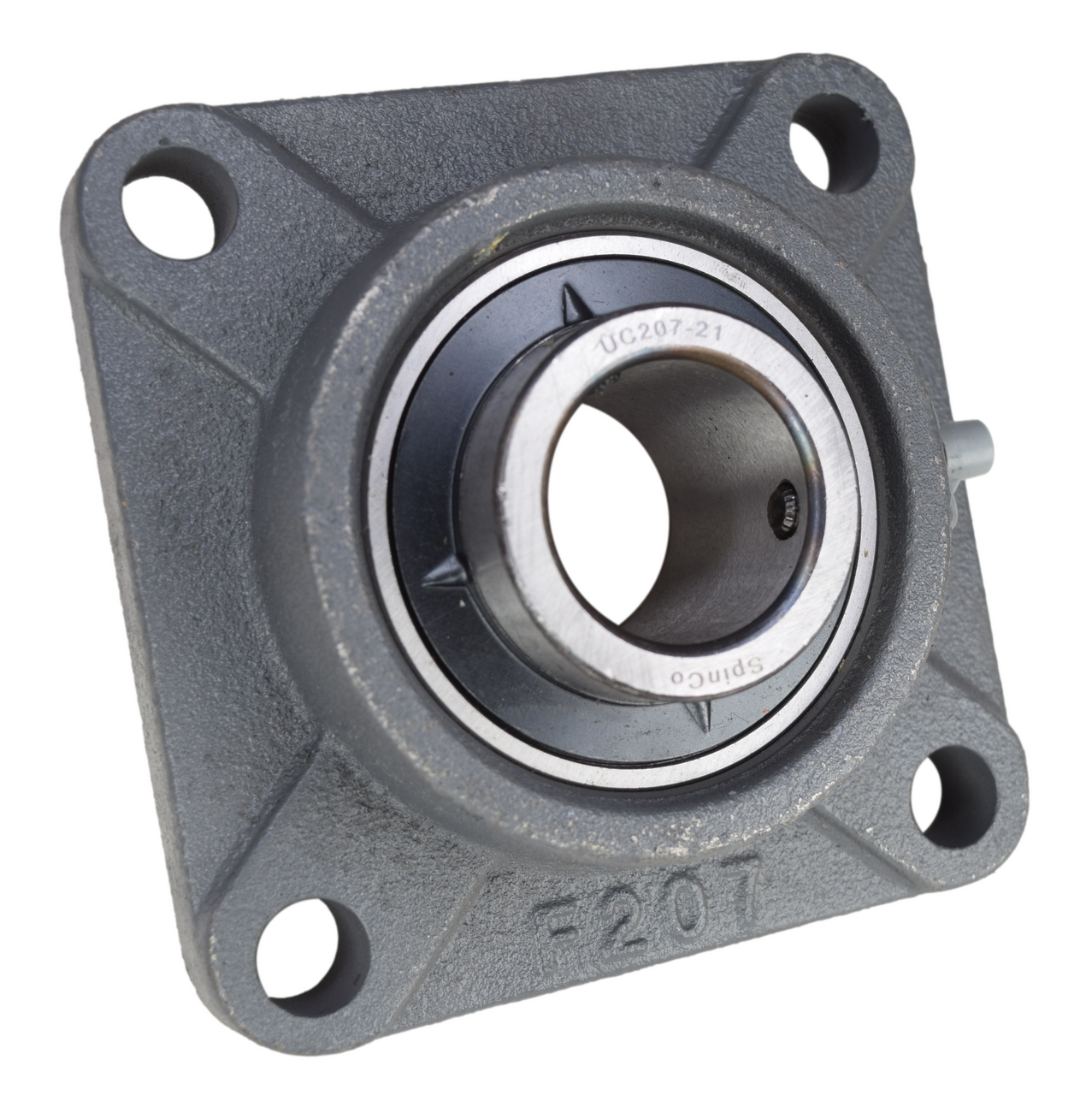

Description - 1-5/16" Four Bolt Flange Bearing UCF207-21, F4B-SC-105, VF4S-221, SF-1-5/16
High quality 1-5/16" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-5/16" |
3.62" |
4.61" |
1.75" |
.51" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCF207-21
Browning: VF4S-221
Dodge: F4B-SC-105
Fafnir: RCJC-1-5/16
Fafnir: YCJ-1-5/16
Link-Belt: F3-U221N
NSK: UCF207-21S
NTN: UCF207-105T
Peer: FHSFJ207-21G
RHP: SF-1-5/16
Sealmaster: SF-1-5/16
SKF: FY-1-5/16-TM
