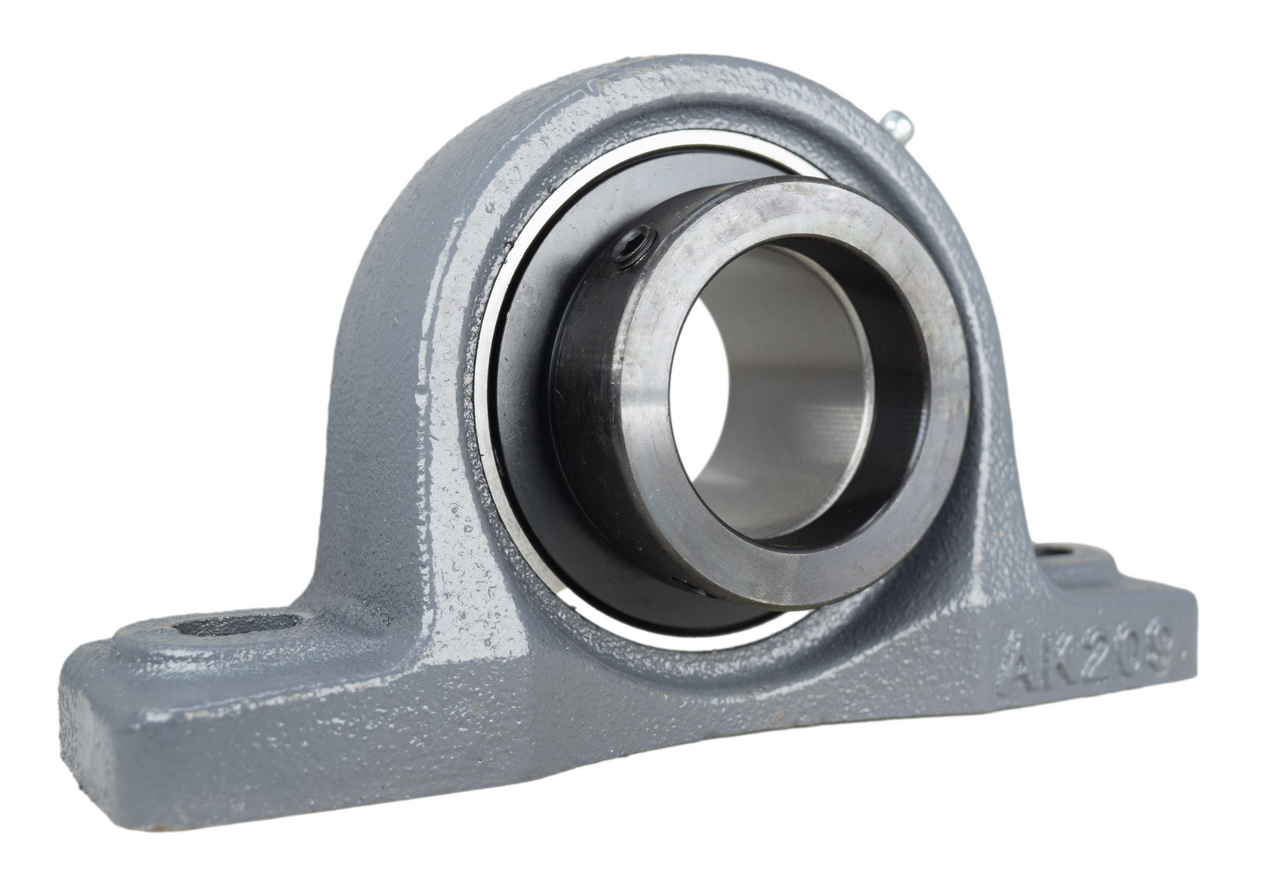

Description - 1-3/4" Pillow Block Bearing W/ Lock Collar RAK-1-3/4, VPLE 228, HCAK209-28
High quality 1-3/4" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1-3/4" |
2.06" |
5.75" |
7.47" |
4.15" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP209-28
Browning: VPLE 228
Dodge: P2B-SXRB-112
FAFNIR: RAK-1-3/4
Hub City: -
IPTCI: NAPL209-28
Link Belt: PL-Y228N
NTN: UELPL209-112T
SKF: SYH-1-3/4-WM
Seal Master: RPL-28E & VPL-28E
