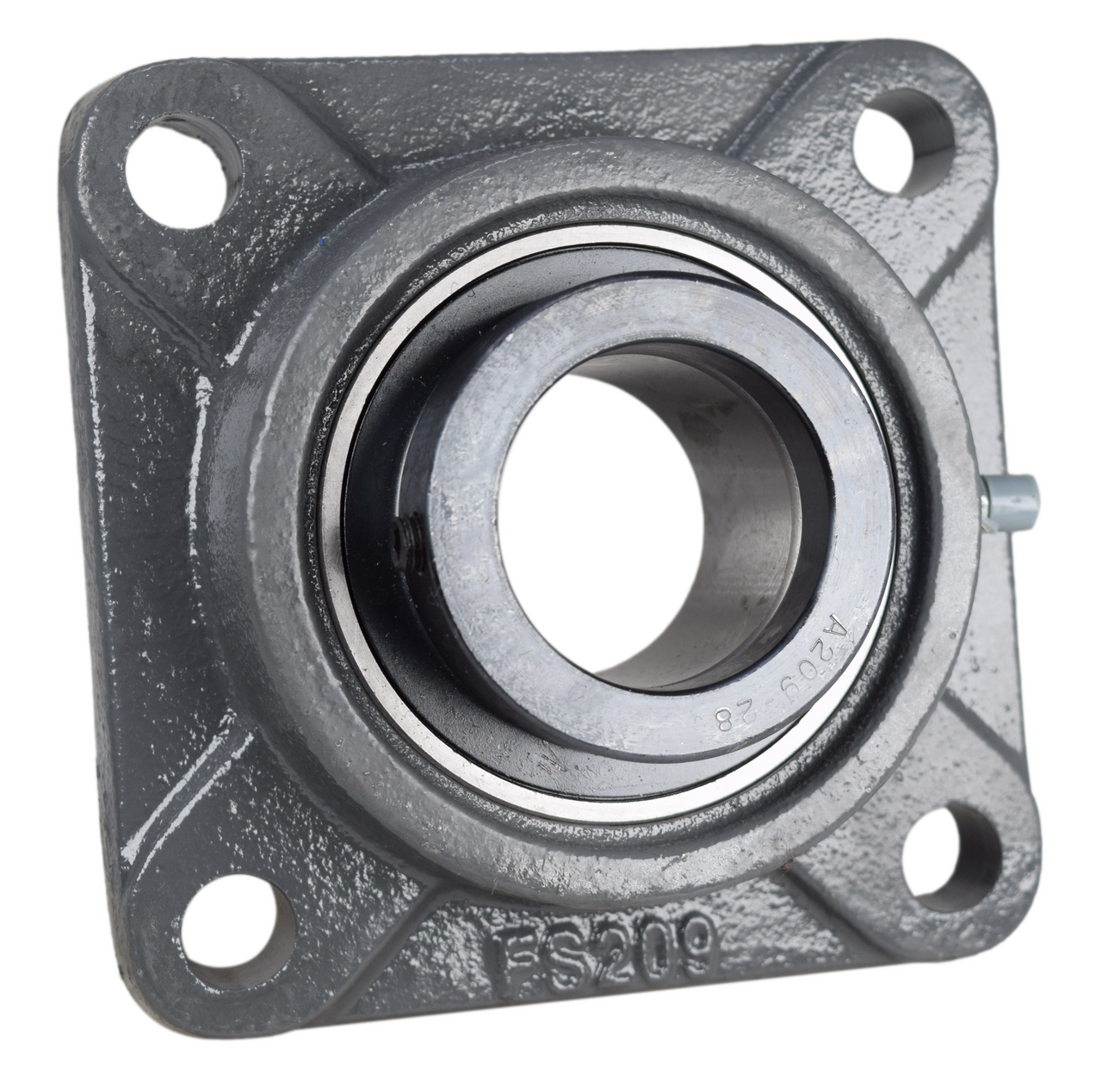

Description - 1-3/4" Four Bolt Flange Bearing W/ Lock Collar HCFS209-28
High quality 1-3/4" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-3/4" |
4.13" |
5.32" |
2.32" |
0.63" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS209-28
AMI: UGSLF209-28
Browning: VF4E-228
Dodge: P4B-SXR-112
FAFNIR: RCJ-1-3/4
Hub City: -
IPTCI: NANF209-28
Link Belt: F3Y228N
NTN: UELFU208-112T
SKF: FY-1-3/4-WM
Seal Master: RF-28E & VF-28E
