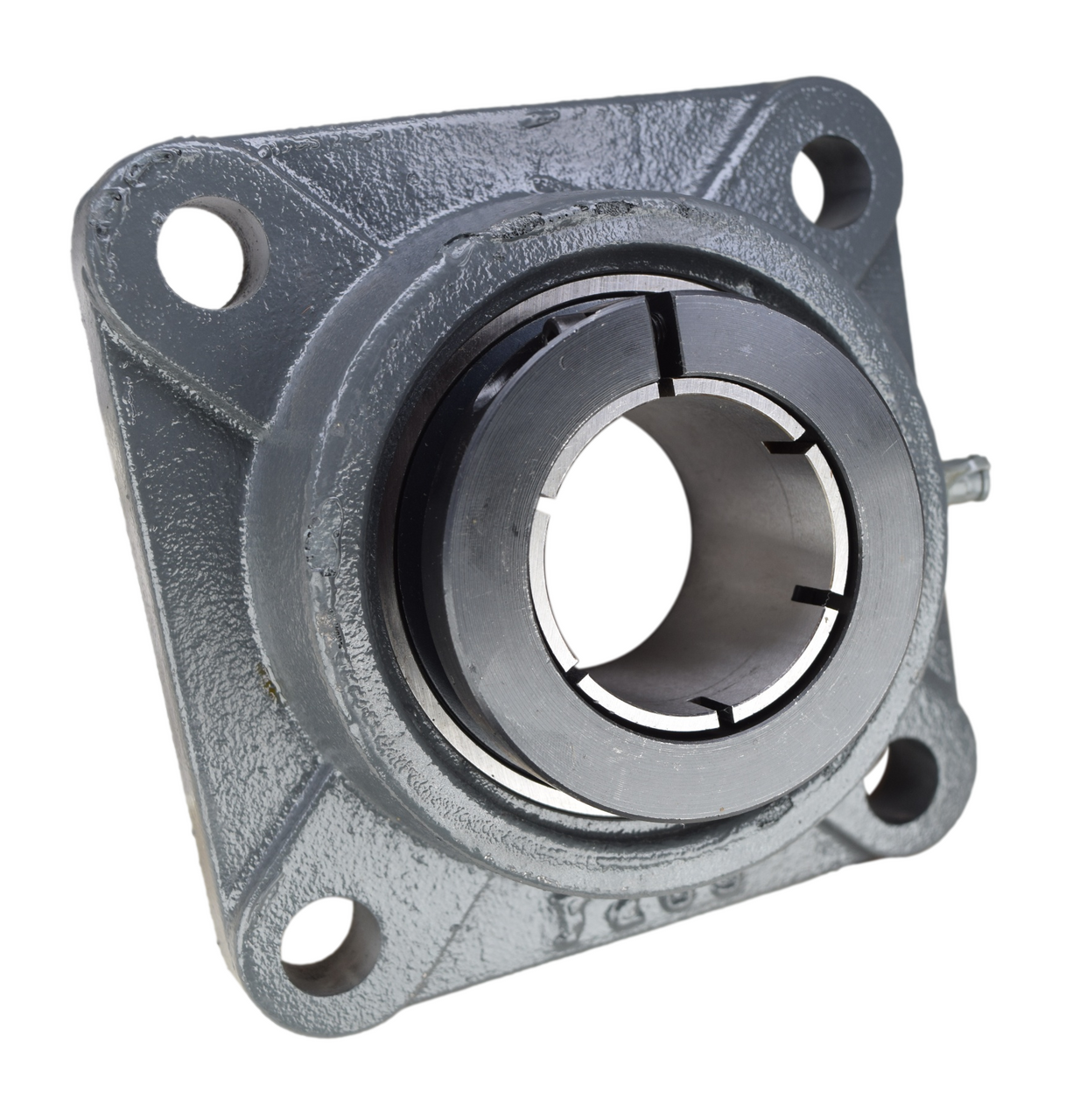

Description - 1-3/4" Concentric Locking Flange Bearing UEF209-28, GRF209-28, F4B-DL-112
High quality 1-3/4" four bolt flange bearing. The bearing has a wide inner ring with a concentric 360 lock collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-3/4" |
4.13" |
5.39" |
2.06" |
0.63" |
INTERCHANGE
Browning: VF4B-228
Dodge: F4B-DL-112
SealMaster: SF-28T
Peer: GRF209-28
AMI: UEF209-28
FYH: NUF209-28
