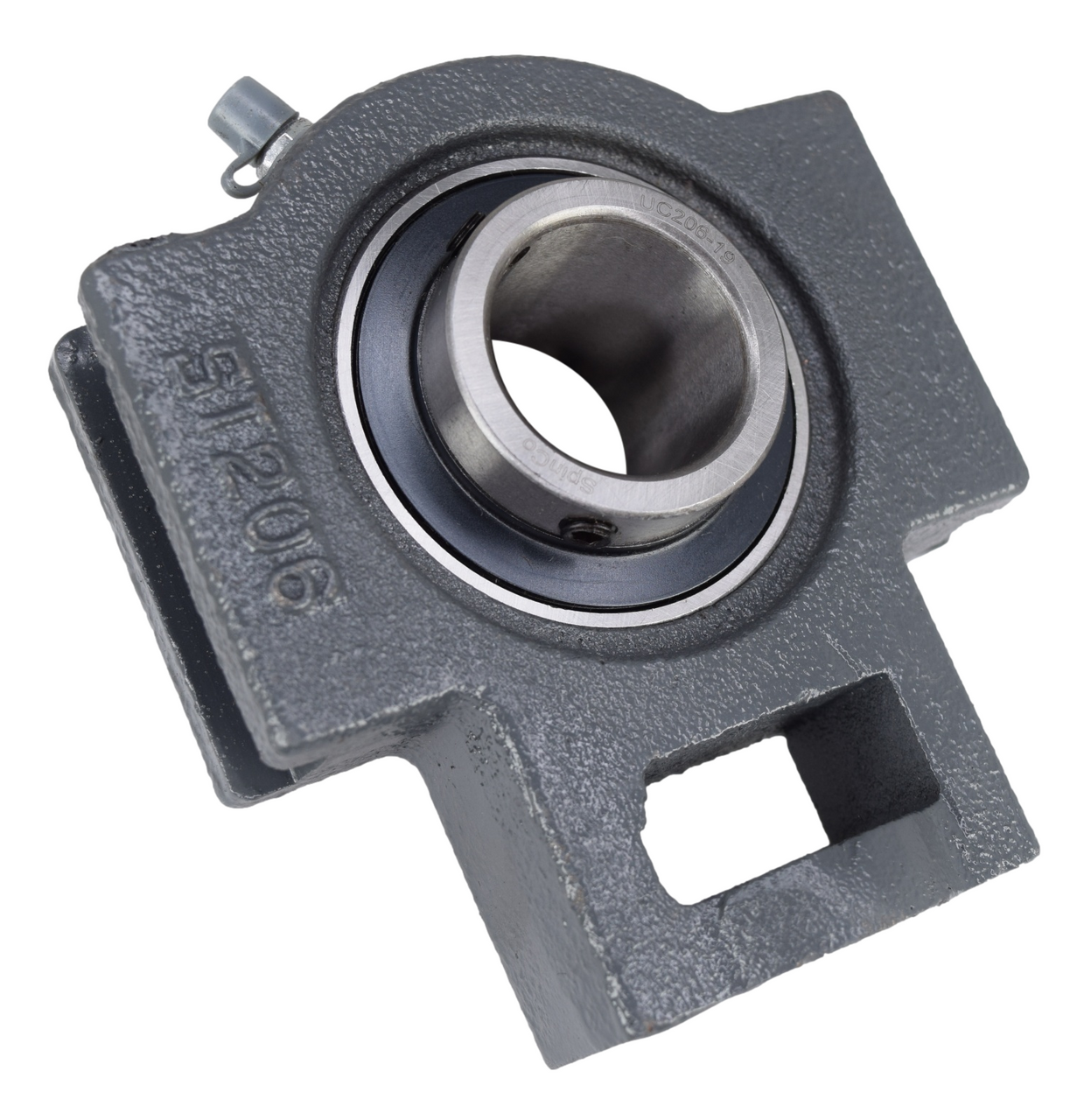

Description - 1-3/16" Take-up Ball Bearing Unit UCT206-19, UCST206-19
High quality 1-3/16" take-up bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Dimensions:
Bore: 1-3/16"
Bolt hole: .8661 in. (22mm)
Overall length: 4.44 in. (113mm)
Slot size: .531 in. (13.5mm)
Width from slot to slot: 3.50 in. (89mm)
INTERCHANGE
AMI: UCST206-19
Browning: VTWS219
Dodge: -
Dodge: WSTU-SC-103
Fafnir: YTU-1-3/16
Fafnir: -
Link-Belt: TH3-U200N-1-3/16
Link-Belt: WSTU250-1-3/16
NSK: -
NTN: UCT206-103T
Peer: UCT206-19
SKF: TBY-1-3/16-TM
Sealmaster: ST-19
