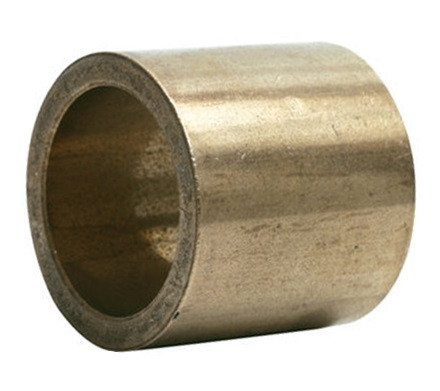

Description - 1/2"x5/8"x1" Sintered Bronze Sleeve Bushing
1/2" X 5/8" X 1" Bronze Sleeve Bushing
Description:
High quality, oil impregnated bronze material that does not require added grease. Has a higher K-strength than the industry standard. Made in the USA. SAE 841.
Technical Data:
| Attributes: | Values" |
| Nominal I.D. (in) | 1/2 |
| Nominal O.D. (in) | 5/8 |
| I.D. Min (in) | 0.5010 |
| I.D. Max (in) | 0.5020 |
| O.D. Min (in) | 0.6270 |
| O.D. Max (in) | 0.6280 |
| Nominal Length (in) | 1 |
| Length (in) | 1.0000 |
| Oil Content | 0.19 |
| V Value (Max) | 1200 |
| PV Value (Max) | 50000 |
| Interchangeable with | AA-628 |
| Interchangeable with | B810-8 |
| Interchangeable with | P-50-8 |
| Interchangeable with | EP081016 |
