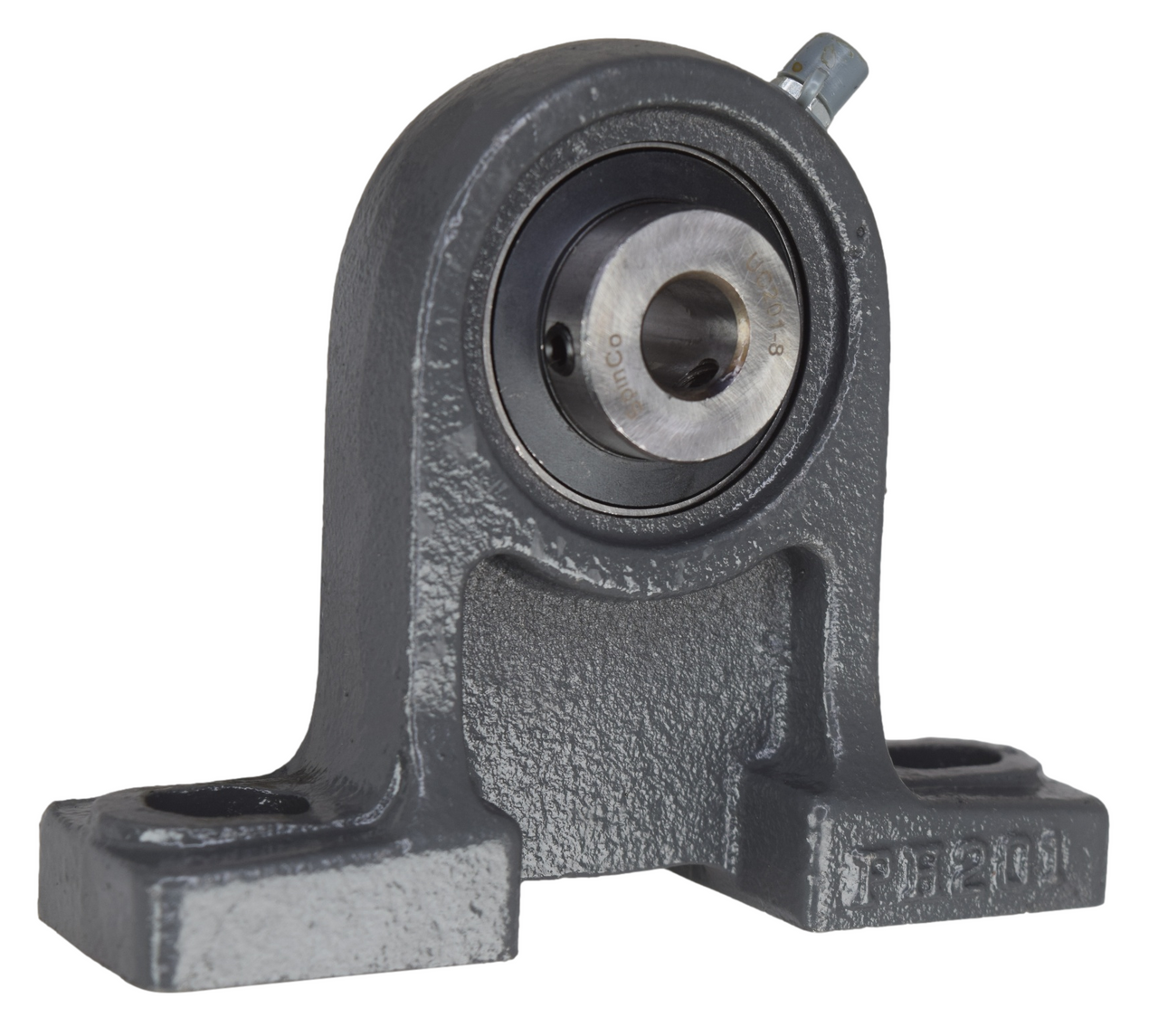

Description - 1/2" High Centerheight Pillow Block Bearing UCPH201-08
High quality high centerheight 1/2" pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1/2" |
2.75" |
3.75" |
5.00" |
3.97" |
Click Above for Full Dimensions
INTERCHANGE
AMI: UCPH 201-08
NTN: UCHP201-008T
FYH: UCPH201-08
The UCPH201-08 1/2" high centerheight pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCPH201-08 1/2" high center height pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCPH201-08 high centerheight pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCPH201-08 1/2" centerheight pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
