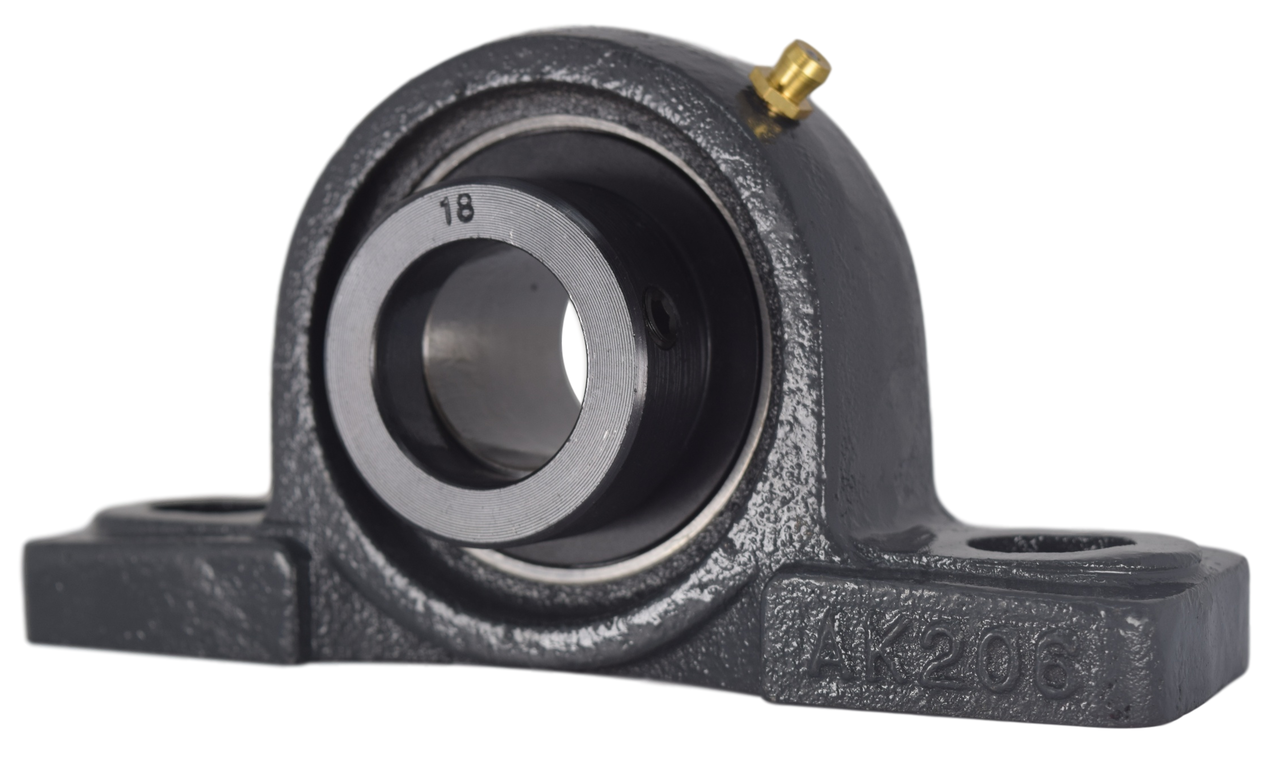

Description - 1-1/8" Pillow Block Bearing W/ Lock Collar RAK-1-1/8, VPLE 218, HCAK206-18
High quality 1-1/8" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
| Basic Dimensions | ||||
| Shaft Size | Shaft Height | Bolt Distance | Overall Length | Overall Height |
| 1-1/8" | 1.56" | 4.76" | 6.50" | 3.23" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP206-18
Browning: VPLE 218
Dodge: P2B-SXRB-102
FAFNIR: RAK-1-1/8
Hub City: -
IPTCI: NAPL206-18
Link Belt: PL-Y218N
NTN: UELPL206-102T
SKF: SYH-1-1/8-WM
Seal Master: RPL-18E & VPL-18E
