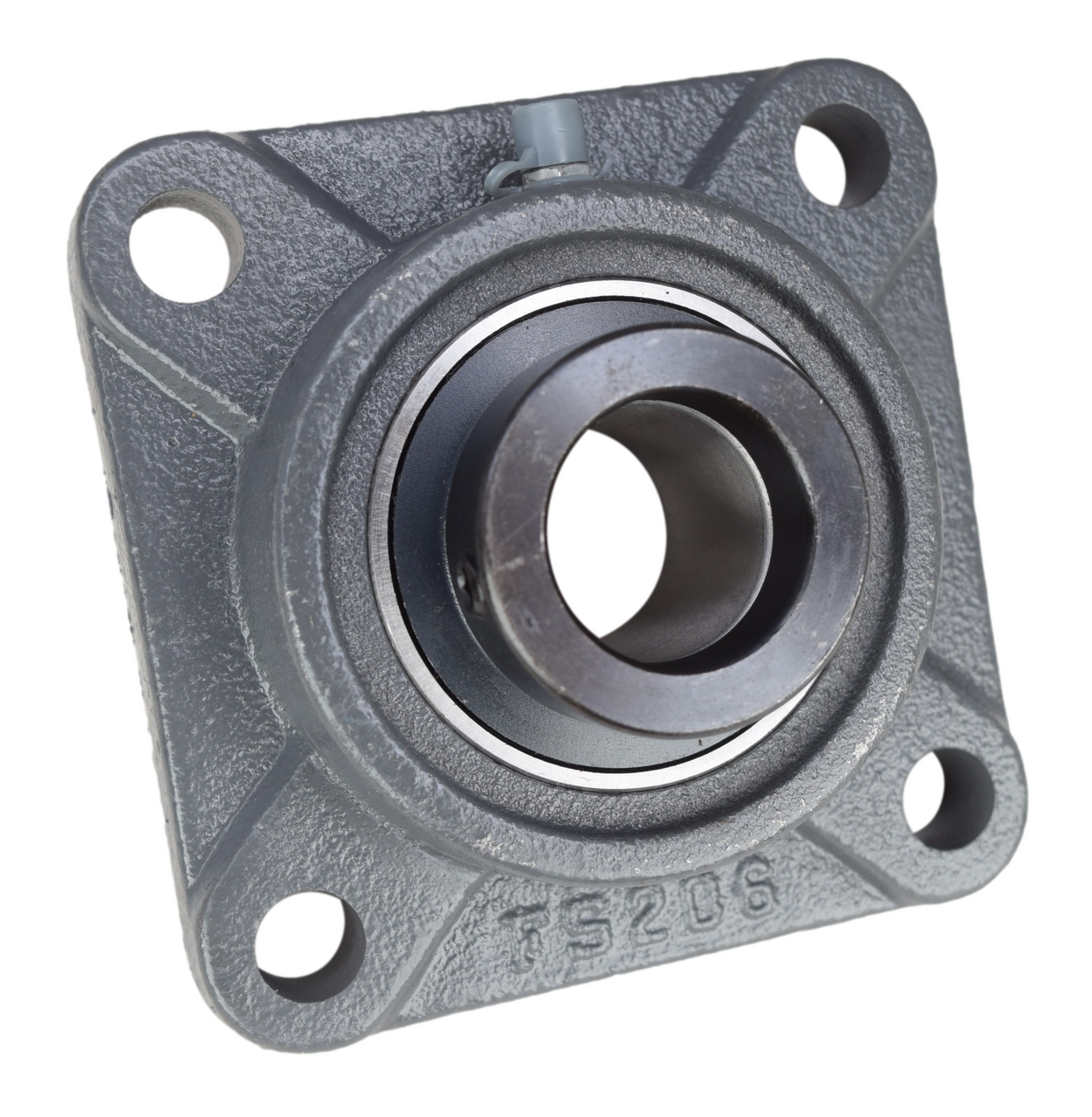

1-1/8" Four Bolt Flange Bearing W/ Lock Collar HCFS206-18, VF4E-218, RCJ-1-1/8, P4B-SXR-102
$16.47
SKU:
HCFS206-18
Description - 1-1/8" Four Bolt Flange Bearing W/ Lock Collar HCFS206-18, VF4E-218, RCJ-1-1/8, P4B-SXR-102
High quality 1-1/8" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-1/8" |
3.25" |
4.17" |
1.97" |
0.51" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS206-18
AMI: UGSLF206-18
Browning: VF4E-218
Dodge: P4B-SXR-102
FAFNIR: RCJ-1-1/8
Hub City: -
IPTCI: NANF206-18
Link Belt: F3Y218N
NTN: UELFU206-102T
SKF: FY-1-1/8-WM
Seal Master: RF-18E & VF-18E
