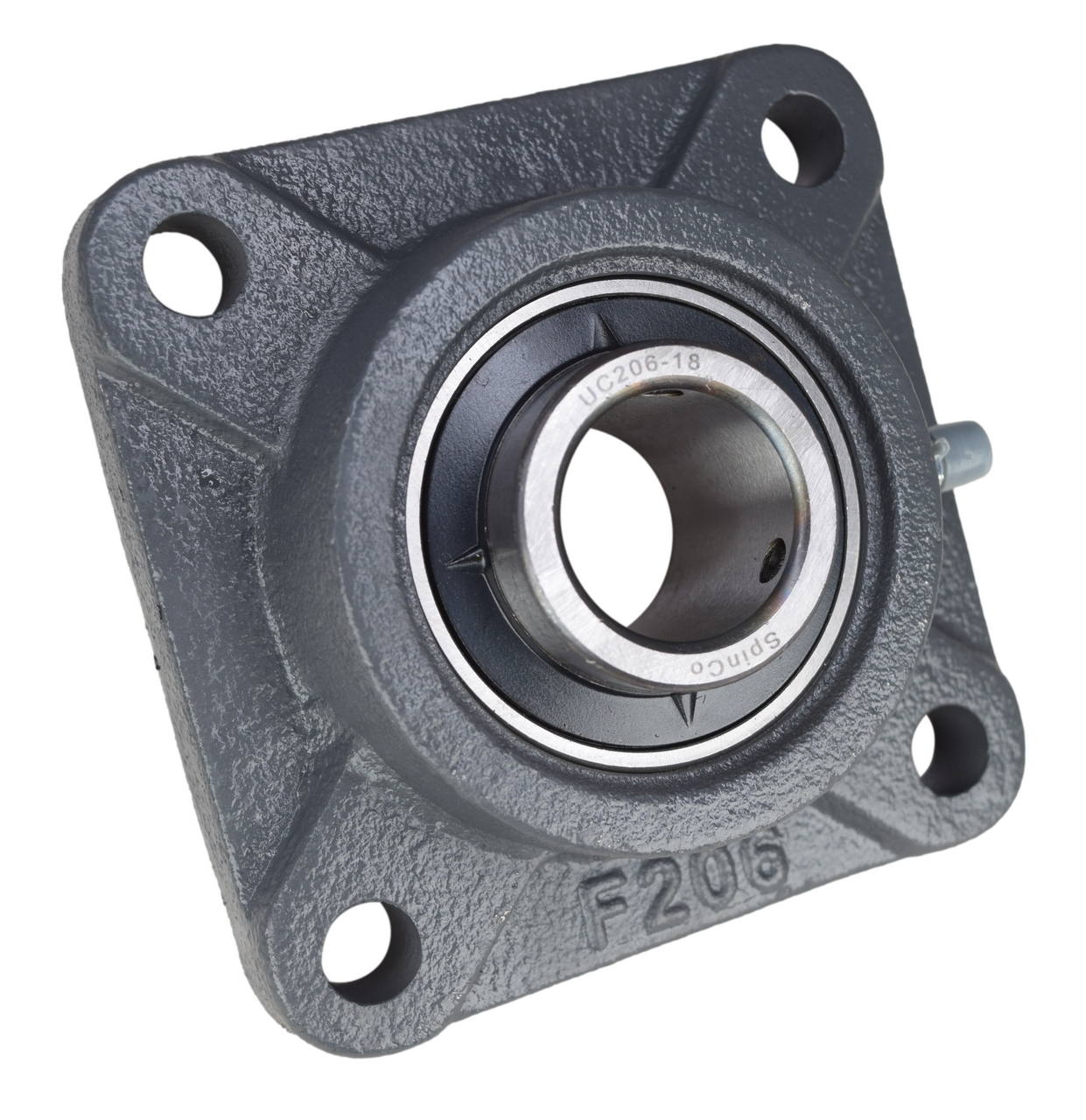

Description - 1-1/8" Four Bolt Flange Bearing UCF206-18, F4B-SC-102, VF4S-218, SF-1-1/8
High quality 1-1/8" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-1/8" |
3.27" |
4.25" |
1.58" |
0.47" |
Click Above for Full Dimensions
INTERCHANGES
AMI: UCF206-18
Browning: VF4S-218
Dodge: F4B-SC-018
Fafnir: RCJC-1-1/8
Fafnir: YCJ-1-1/8
Link-Belt: F3-U218N
NSK: UCF206-18S
NTN: UCF206-102T
Peer: FHSFJ206-18G
RHP: SF-1-1/8
Sealmaster: SF-1-1/8
SKF: FY-1-1/8-TM
