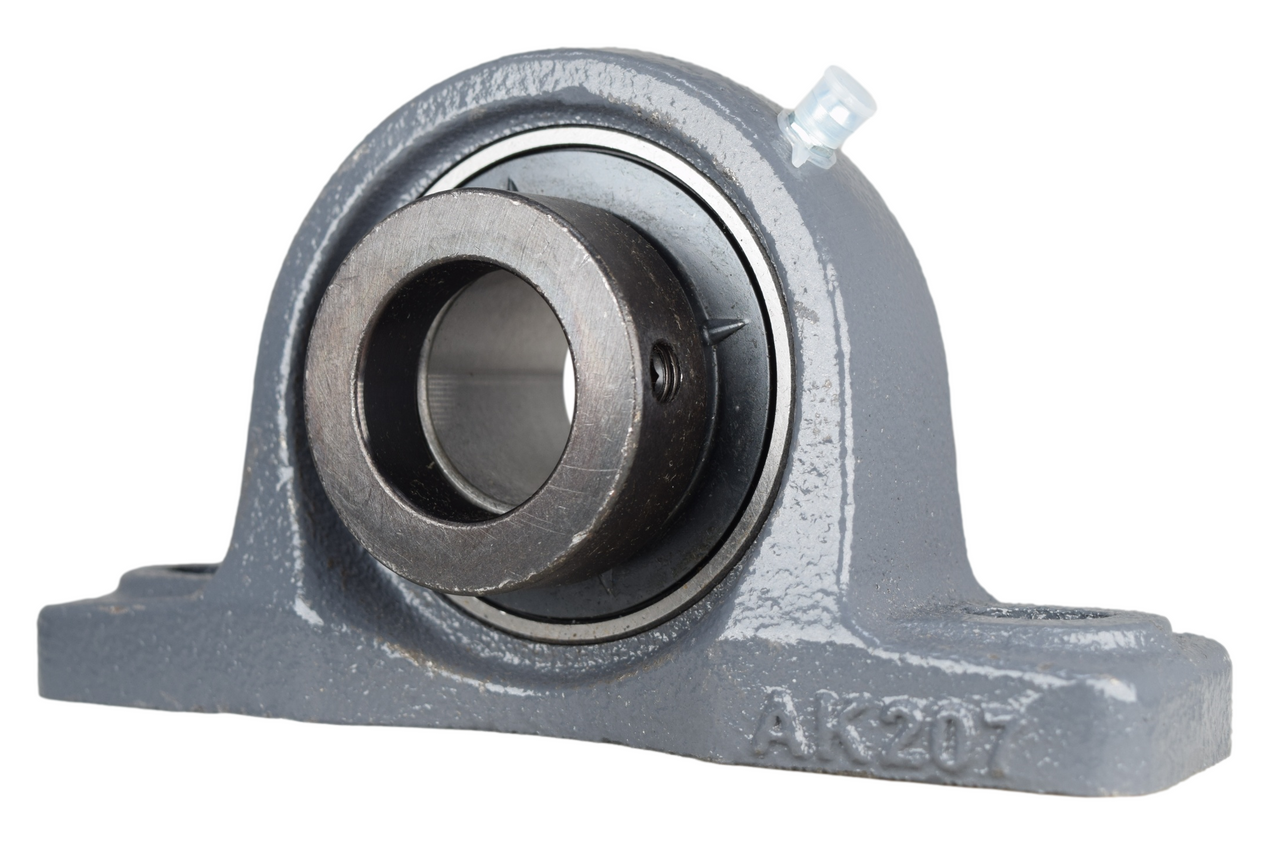

Description - 1-1/4" Pillow Block Bearing W/ Lock Collar RAK-1-1/4 VPLE 220 HCAK207-20
High quality 1-1/4" pillow block bearing. The bearing has a wide inner ring with a eccentric locking collar (cam lock) for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1-1/4" |
1.81" |
4.96" |
6.57" |
3.62" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCLP207-20
Browning: VPLE 220
Dodge: P2B-SXRB-104
FAFNIR: RAK-1-1/4
Hub City: -
IPTCI: NAPL207-20
Link Belt: PL-Y220N
NTN: UELPL207-104T
SKF: SYH-1-1/4-WM
Seal Master: RPL-20E & VPL-20E
