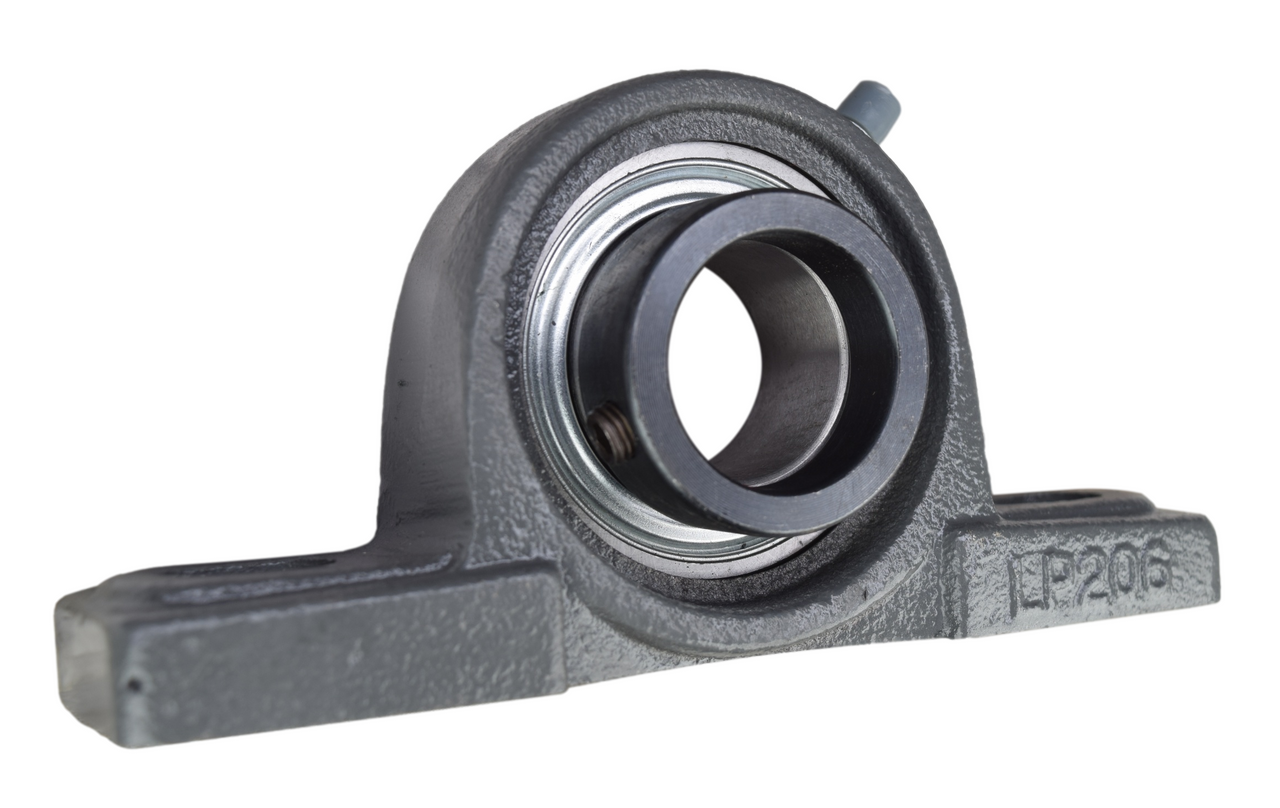

1-1/4" Light Duty Pillow Block Bearing W/ Lock Collar ALP206-20G, FHPWC206-20G, KHLLP206-20
$13.05
SKU:
ALP206-20G
Description - 1-1/4" Light Duty Pillow Block Bearing W/ Lock Collar ALP206-20G, FHPWC206-20G, KHLLP206-20
High quality light duty 1-1/4" pillow block bearing. The bearing has a narrow inner ring with locking collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1-1/4" |
1.69" |
4.72" |
6.14" |
3.27" |
Click Above for Full Dimensions
INTERCHANGE
Peer: FHPWC206-20G
AMI: KHLLP206-20
ITPCI: SALP206-20G
