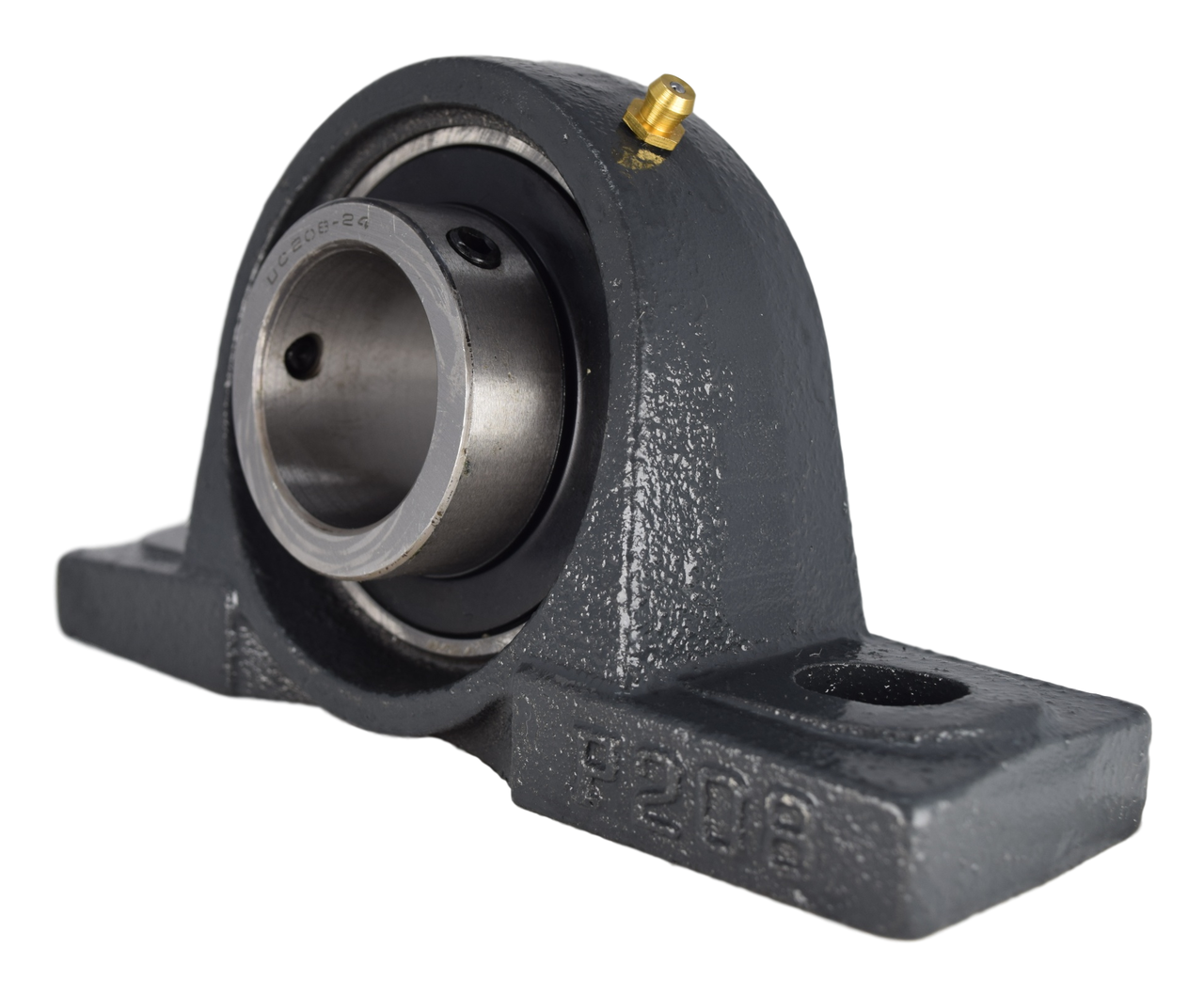

Description - 1-1/2" Pillow Block Bearing UCP208-24
High quality 1-1/2" pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
INTERCHANGE
AMI: UCP 208-24
Browning: VPS-224
Dodge: P2B-SC-108
Fafnir: RASC-1 1/2
Fafnir: YAS-1 1/2
Link-Belt: P3-U224N
Link-Belt: P3-Y224N
NSK: USP208-24S
NTN: UCP208-108T
Peer: FHSP208-24G
RHP: NP-1 1/2
Sealmaster: NP-24
|
Basic Dimensions |
||||
|
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
|
1-1/2" |
1.94" |
5.35" |
7.25" |
3.86" |
Click Above for Full Dimensions
The UCP208-24 1-1/2" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP208-24 1-1/2" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCP208-24 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP208-24 1-1/2" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
