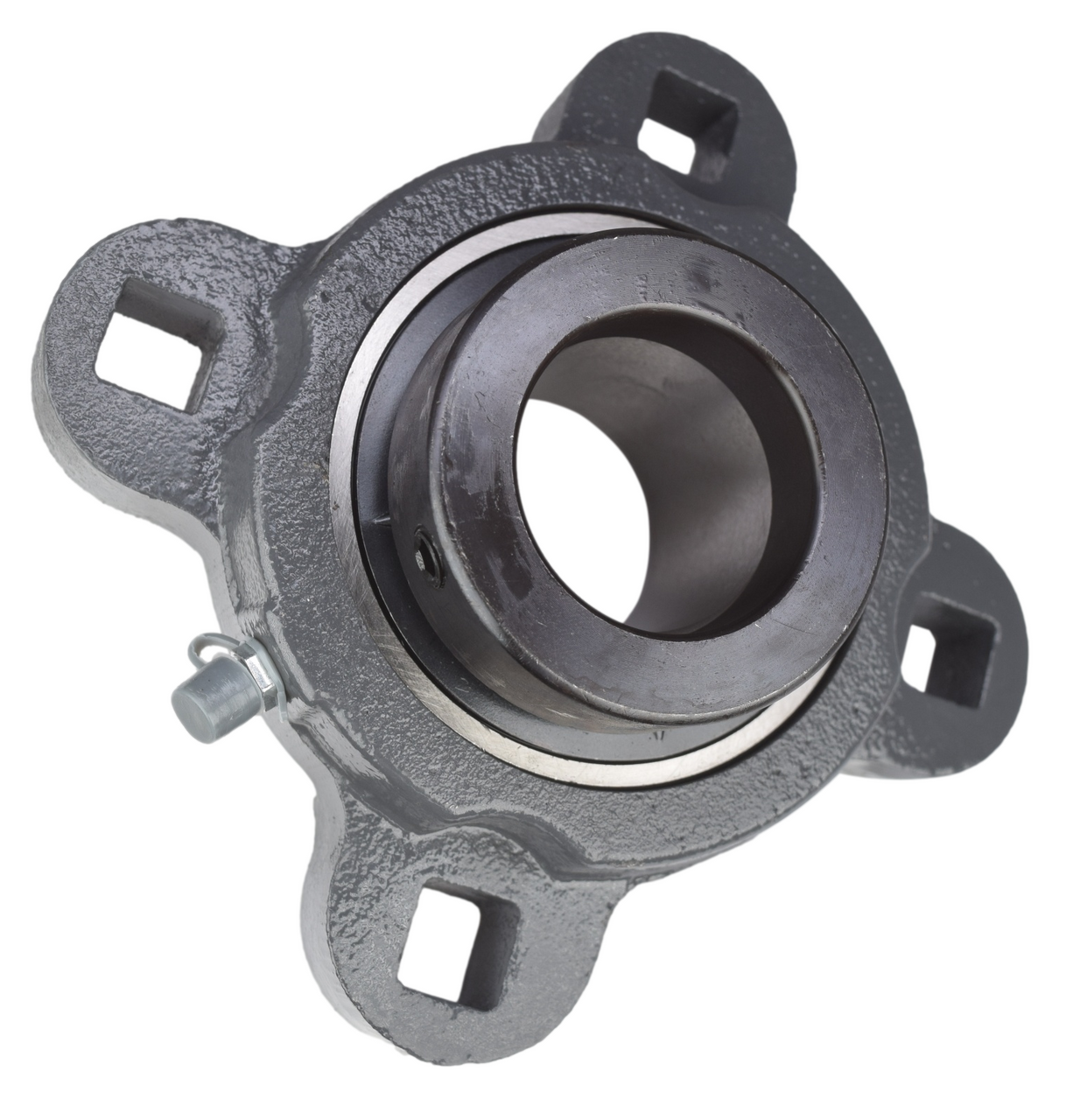

Description - 1-1/2" Four Bolt Ductile Flange Bearing for John Deere AN190738, AH163595
High quality 1-1/2" 4-bolt flange bearing. Housing is Ductile Iron for high impact loads.
Dimensions:
Bore: 1-1/2"
Bolt hole to bolt hole (Measured across the bore of the bearing): 4.687 in. (119mm)
Overall length: 5.8125 in. (148mm)
Bolt hole: 0.55 in. (14mm) SQUARE
Fits the following applications:
John Deere
AH163595 Combines - 9560STS, 9570STS, 9660STS, 9670STS, 9750STS, 9760STS, 9860STS, S550 (SN 745100-764999)
AN190738 Cotton Pickers.
